Basic Info.
Automatic Grade
Automatic
Crimp&Skiving Range
1/4-2" or 6-51mm up to 2" 4sp
The Largest Crimp Force
300 Tons
Dies Number
15 19 23 26 31 36 41 47 55 63mm
Packing Size
L 730*W 610*H 640 mm
Transport Package
Wooden Box
Production Capacity
500 Sets/Month
Product Description

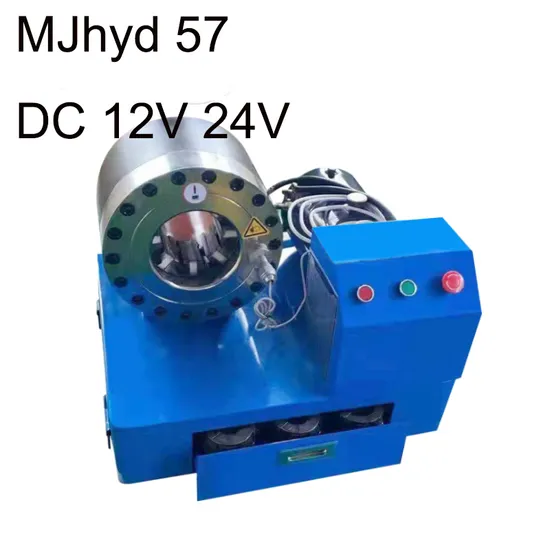

12V 24V DC battery mobile use portable hydraulic hose crimper crimping machine Product Description
| Crimping&skiving inner diameter range | 1/8-2" 3-51mm 1-4 wire |
| Crimp outer diameter range | 4-80mm |
| Motor power | 1.6KW |
| Voltage | 12V 24V battery |
| Oil pump | 4L |
| Max opening | 114mm |
| The max open tolerance | ±30mm |
| Scale accuracy | 0.01mm |
| Operate methods | button or foot pedal |
| Dies molds | regular 10 sets ,could customize for more |
| Dies number | 15mm 19mm 23mm 26mm (length 60mm) |
| 31mm 36mm 41mm (length 70mm) |
| 47mm 55mm 63mm (length 80mm) |
| Packing size | L 730*W 610*H 640 mm |
| Gross weight | 180KG |
Detailed Photos
Work on different hose
Factory product process
Payment methods We usually accept the payment via T/T(Telegraphic Transfer/bank transfer), Payment on line, Wetern Union payment and so on.
Usually 30% in advance and balance pyament before delivery. If you have any question,please contact me.
FAQ Q1 : Are you factory ?A1: Yes,we are factory,and our factory has over 18 years experice for product the machines;Q2: Do you have the machine in stock?A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.Q3: Could you customize the voltage ?A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.Q4: How about the warranty?A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not workwrong;If your machine cann''t work,please contact us,we will help you fix it or send you some spares.Q5 : Could you customize dies molds?A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize thedies pattern or dies number regarding your requirement.Q6: Does the machine operate easily?A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip foreach machine,we also could provide the operate video.Q7 :Can you produce product with my own brand?A7. Yes, it''s available except famous brand which are not allowed.Q8: Could you customize color for me?A8: Yes,we can customize the color regarding your requirement.
>>
