for Efficiency Milling Alloys Machining Center CNC Machine with Bt40 Spindle Taper

Product Description

Automated Precision CNC Milling Machine for Vertical Machining
Product Description
The Line Rail Vertical Machining Center TZ-V640 is the epitome of next-generation CNC machine tools, expertly designed with ergonomics, precision manufacturing, and cutting-edge automation technologies. After extensive simulation and rigorous prototyping, this machine promises unmatched performance. It's highly versatile, serving industries such as medical, UAV, new energy auto parts, precision fixtures, and automation equipment parts, delivering exceptional precision for mass production of intricate components.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

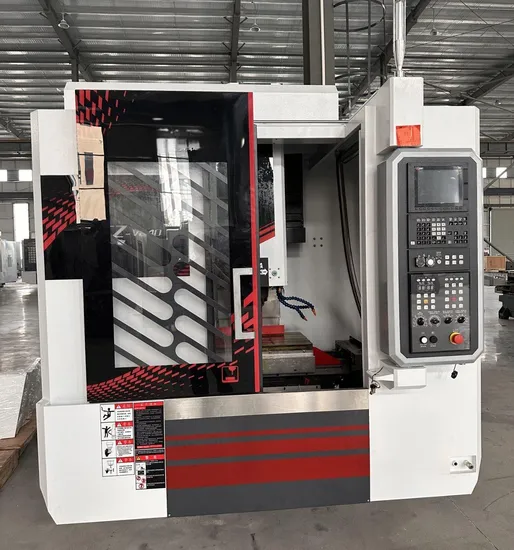

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Delivers optimal processing conditions and a superior production environment.
Our imported high-precision machinery-including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines-ensures impeccable workpiece accuracy. This significantly enhances assembly precision and extends the longevity of accuracy.
• Cutting-Edge Detection Methods
Positioning accuracy is meticulously tested and finely tuned using advanced laser technology, strictly following the German VDI3411 inspection standard (5 tests each).
Every machine undergoes rigorous processing tests before leaving the factory, ensuring they meet and exceed actual processing accuracy requirements.
Product sample
• This CNC machine center integrates milling, drilling, and tapping functionalities seamlessly.
• Capable of CNC machining various metal profiles including aluminum, steel, copper, as well as non-metal materials.
• Widely applicable in industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails.
Packaging & Shipping
•Highly Protective Packaging
•Structural Stability
•Environmentally Friendly and Recyclable Packaging
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment upon ordering, 60% balance payment before shipment.
2. What are your trade terms?
A: FOB, CFR, and CIF are all acceptable.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. You can place your order based on the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are meticulously packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us the product drawings, and we will choose the most suitable machines for you.

---
