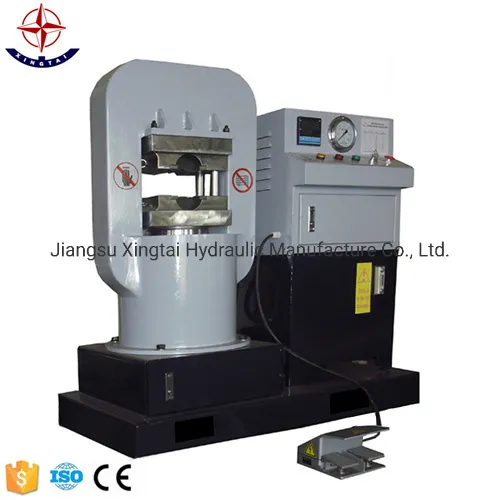

200ton Hydraulic Steel Wire Rope Sling Press Machine

Product Description

200Ton Steel Wire Rope Press Machine is hydraulic wire rope swage machine, used to make wire rope slings. Widely used at marine, wharf, metallurgy, railway, electrics and other filed. Xingtai machines have exported to UK, Australia, Thailand, India, Nigeria, Russia, Botswana, Polland, South Africa and so on.

Mode No.	GT-200T
Max press power (KN)	2000
Max wire rope diameter in one pressing (mm)	Φ20
Max wire rope diameter in multi-pressing (mm)	Φ22
Power (KW)	2.2
Max working pressure (Mpa)	56Mpa
Max piston movement (mm)	80
The up speed of piston (mm/sec)	8
The down speed of piston (mm/sec)	10
Total length (mm)	1200
Total width (mm)	600
Total height (mm)	1400
Net weight (kg)	900
Accessory	Seals,key,use manual
Package	Standard export package
Video	Yes
Delivery time	20 days
Features
1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface
2. The body of swaging construction is manufactured from one single block construction that ensure stress uniform, high strength, long service life.
3. Xingtai use latest materials, Combined seals and ultra-wearable guide ring between the the piston rod and the cylinder, so that the cylinder is with higher sealing performance, safe, reliable and durable
4. Round mold design and automatic positioning is easy to change different molds.
5. Piston can be stopped any position.
How to operate
1. Fix mould, tight the bolts on the left of both tool set;
2. Adjust pressure according pressure table shows on machine;
3. Put sleeve/ferrule with wire rope on the middle of mould vertically;
4. Operate pedal rise switch, the piston will rise and rising pilot lamp lights; Auto-stop when reach adjusted presure; operate down switch and take out pressed wire rope;
After-sales services
24 hours around the clock & 12 months warranty
Life-long maintenance service for the product

Packing&Shipping
Shrinkwrap and iron box, dies are packed in iron box
FAQ
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services?
A: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: 1. Fix fitted mould, tight the bolts on the left of both tool set ( the tool is offered by factory);
Refer diameter of wire rope table to adjust pressure, put sleeve with steel wire rope in the middle of mould Vertically.
2. Operate pedal rise switch, the piston will rise and the rising pilot lamp lights; Auto-stop when
reach given pressure and finish pressing;
3.Operate descendent switch, the piston will descend and the descendent pilot lamp lights; and take out pressedsteel wire rope. We will delivery machine with use manual.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
Q: How can we believe your quality or service?
A: We have many oversea customers, you can contact them to know more about us. Maybe we have customers in your country, you may call them or visit them to see our machine.

---
