Product Details
Product Description
Product Description
No. 610201005 Model ASM2224

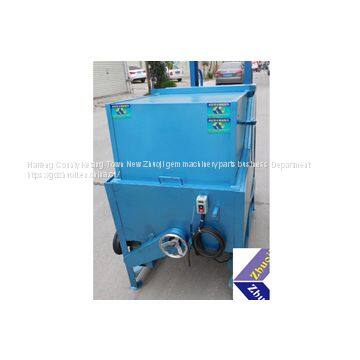

Zhuoji brand automatic slicing machine ASM2224
Suitable for cutting stone within 40cm into sheet material within 25cm material can be cut once, can be turned to cut 50cm selection of lathe guide rail, with high processing accuracy, high efficiency, smooth cutting surface, uniform thickness, sealing work process, reduce dust and noise pollution to the environment.
Automatic feeding, automatic stop after cutting, high labor-saving degree, with over-range protection function.
Detail: automatic type single pole oil seal cutting machine, high quality bearings and track, cut gem raw materials of high precision, with automatic feed and schedule control switch, safe and reliable, only need to fix gem raw material in the machine's worktable, probable machine travel switch distance, after finish cutting machine, automatic stop.
There is no need for other operations during the operation of the machine, and one person can operate 5-6 sets.
The machine is equipped with protective cover, which is safe, low noise and pollution-free in the process of use.
The use of oil pump circulation supply cooling lubricating oil, save supplies, reduce costs.
It is suitable for Baoyu stone processing plant to cut larger rough stone.
(no oil)
Zhuoji 24 inch single blade oil cutting machine ASM2224
Technical parameters
Input Voltage /Voltage: AC 380V
Motor Power/POWER: 3KW
Rotational Speed: 1250 r/min
Loading cutting piece size: 24 inches
Dimension: length 1150 mm× width 850mm× height 1300mm
Guangzhou Panyu Zhuoji gem Machinery Co., Ltd., founded in 2003, is a gem machinery supplier integrating R & D, production and sales. The company has introduced a large number of professional production tools and advanced processes from home and abroad. After more than 10 years of time and careful design and manufacturing, it has now developed into an enterprise with a mature production, processing, sales and after-sales service system.
The continuous improvement of product quality has made our products highly praised by the industry. The products are sold all over the country, Europe, America, Southeast Asia and other countries and regions. At the same time, it has become an important supplier of many gem processing bases, and is deeply recognized by users at home and abroad.
Welcome customers to visit and talk
Business scope:
Jewelry and gem processing equipment series
1. Automatic processing equipment for gem cutting / cutting sheet
2. Automatic CNC processing equipment / tools for colored gemstones.
3. Automatic CNC processing equipment / tools for gem beads
4. Jade jade bracelet processing equipment / tools
5. Special shaped and heteromorphic processing equipment / tools
6. Gem glue injection and glue filling optimization processing equipment / tools
7. Vibrating barrel polishing processing equipment / abrasive
8. Drilling equipment / tools
>>
