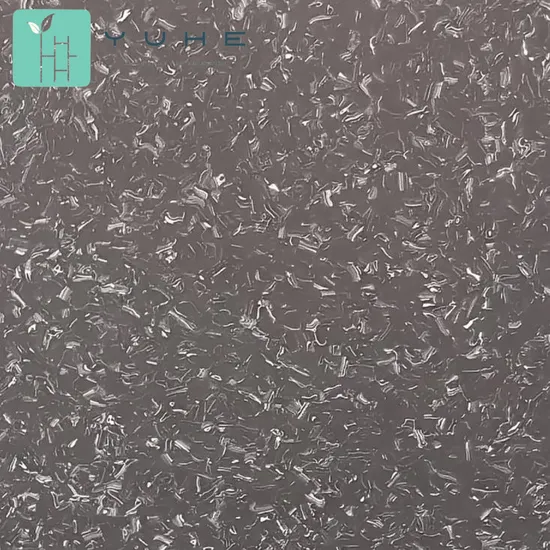

Electro-Static Discharges ESD Flooring Tiles in Vinyl with Floorscore

Product Description

Product Description Brief Introduction
Electrostatic Discharge (ESD) flooring, also known as anti-static flooring, or static control flooring, comes with permanent anti-static performance (static-dissipative or conductive) and protects electronics from damage caused by static electricity.
The ESD flooring tiles are of high density, homogeneous, and non-porous natural organic tile visual. They're manufactured by an extrusion process, mixing and pressing the 100% virgin PVC granules with carbon (graphite) fibers, calcium carbonates, DOPT plasticizer, Titanium dioxide white paint, etc. under proper pressure and temperature. Conductive elements are distributed throughout the flooring material, Thus they give ESD floors electrical conductivity, create an electrical pathway from the walking surface to the ground, and guarantee a permanent ESD performance.
ESD vinyl flooring tiles are the choice of professionals for controlling electrostatic discharge in clean rooms, electronics manufacturing, computer rooms, repair facilities, or anywhere static-sensitive components are being used or manufactured.
ESD Tile Sizes
The popular and standard size is 600×600mm, 610x610mm, and 900×900mm.
The thickness of the tiles is 2.0mm, 2.5mm, and 3.0mm.
Weight: 3980g/m2 (2.0mm Thickness)
Features
Low TVOC emissions
Meet FloorScore®
DOTP plasticizer, Phthalate FREE
Permanent anti-static properties
Outstanding abrasion, scratch, stain, water, chemical, fire, skid, and light resistance
High durability, easy to clean and maintain
Excellent dimension stability
Antibacterial and fungicidal
Various patterns and colors
Wear resistance reaches P class in all ESD vinyl flooring series.
May be seamlessly installed by heat welding
Lifetime electrical resistance warranty. 10-year limited wear warranty. Product Parameters Technical data

Item	Standard	YH FLOORS Result
Electrical Resistance(Ω)	SJ/T11236-2020 EN1081	Conductive	Dissipative
		10E4 - 10E6 ohms	10E6 - 10E9 ohms
Starting Voltage	AATCC-134	50 V	100 V
Static Electrical Propensity	EN 1815	Antistatic (≤ 2 kV)
Walking Body Voltage (V)	ANSI /ESD S20.20-2021 |U|<100V	Average: 30V
Static Decay(s)	Federal Test Method 1018 Method 4046	0.01 sec	0.01 sec
Dimensional Stability(%) after exposure to heat	ISO 23999-2018	0.05%
Wear Resistance(1000r)	EN 660-2	Group P
Slip Resistance Wet	DIN 51130	R9
Fire Resistance	ASTM E648-17	Class I
	EN13501-1	Bfl - s1
Smoke Density	ASTM E 662	< 450
Residual Indentation(mm)	ISO 24343-1:2012	0.01mm
Color Fastness	ISO 105-B02	≥ 6
Critical Radiant Flux	ASTM E648/NFPA 253	Class 1(> 0.45 W/cm2)
Resistance to Staining & Chemicals	EN ISO26987:2012	Not affected, Index 0.
Thermal Conductivity	ISO 10456 (EN 12524)	0.25 W/(m.K)
TVOC After 28 Days(μg/m³)	ISO 16000-3	< 10 μg/m³

Our Advantages * Leading OEM Service provider in ESD Vinyl Flooring Industry.
* The largest ESD vinyl flooring manufacturer in China, with over 20 years of experience.
* The Annual output is around 5 million sqm for ESD tiles and 7.5 million for ESD sheets.
* Quality is among the top 3 in China.
* Serving and completing a lot of ESD vinyl flooring projects for Fortune Global 500 companies in China.
* ISO9001, ISO14001, and ISO45001 certified.
* A full set of SGS certifications of TVOC, RoHS, and other properties contributing to good indoor air quality (IAQ) for durable and sustainable static vinyl flooring tiles.
* ESD vinyl tiles are very flexible because the 100% virgin PVC percentage is 30%, and the DOTP plasticizer percentage is 20%.
* There're no sanding lines on any of our tiles.
* There're no excessive shading variations.
1. Advanced Manufacturing Full-automated production lines to ensure higher production capacity and efficiency.
The longest-tempering production lines in China to control dimensional stability effectively.
2. Good-quality environmental-friendly raw material
100% virgin PVC, 100% recycled.
We use DOTP plasticizer for ESD PVC flooring.
Dioctyl terephthalate commonly abbreviated DOTP or DEHT. It is a non-phthalate plasticizer that is considered safer than ortho-phthalate plasticizers due to its excellent toxicological profile.
The product does not contain carcinogens such as benzene and heavy metals such as lead. And it's of low TVOC emission.
3. R & D Strength Patents in production process optimization.
An independent testing laboratory with appropriate testing instruments and equipment.
Testing and calibration are performed using USA/EU/JAPAN/CHINA standard methods. So we can produce ESD vinyl flooring products in compliance with different standards.
We implement a pretty good color and size management solution. Packaging & Shipping
