Parcel Singulator and Sorting System Singulator Conveyor Parcel Singulator Machine for Warehouse Automation Solutions

Product Description

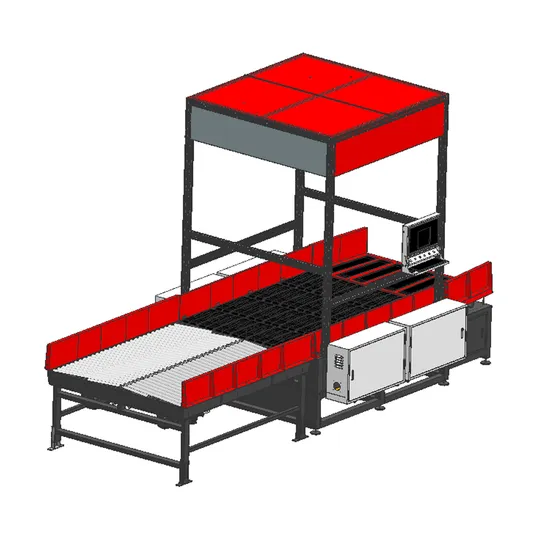

Product Description The Standard Parcel & Package Singulating System
Based on AI vision, this equipment would automatically capture the parcel's information by using image processing algorithm and in motion unit to realize fast packages singulating. It greatly improves the sorting efficiency and reduce the operating area occupied by goods. With 99.9% precision and high efficiency, this equipment could largely improve the parcel sorting efficiency and save the labor and logistic cost.

	MAIN FUNCTION: SINGULATING; CODE SCANNING; VOLUME MEASUREMENT; WEIGHING; SORTING;
	APPLICATION AREA: E-commerce, Express, Warehouse, Logistic,etc.
	Advantage Full automatic High highly efficient

Features * Inline parcel profile visial recognizing * Single parcel positioning * Modular motors control the conveying order * Centralized roller conveyor conveys the parcels in a single stream line (one by one)
Specification

Items	For reference
Main function	parcel/packs/package singulating, weighing, volume measurement and sorting;
Package type	includign paper box, soft package, nylon bag, thin envelope etc. most of parcels;
Package size	L*W*H 80*80*20 mm~~1000*800*800 mm(customization accepted);
Accessory equipment	Belt conveyor part in front ; Centripetal roller in the back;
Singulating efficiency	5,000~8,000 Pcs /Hour
Package abnormal rate	< 0.5%
Equipment size	L*W*H 1650*1290*2950 mm
Width of Assembly line	1000 mm
Working voltage	380V/220V~~50Hz
Working temperature	-5~50ºC
Total power	25 KW
Remarks
Software type	SENAD DWS software
Support system	windows 7/10 or above; 32/64 bits
Software interface	http; tcp; 485;

Related Products

DWS system	wheel sorter	narrow belt conveyor

Company Profile
Senad Robot(Shanghai)Co.,LTD. Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions,such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system,etc. These equipments take machine vision deep learning algorithm and robot motion control as the core, and adopt image processing algorithm, artificial intelligence, pattern recognition, video analysis algorithm, ARM|FPGA|DSP embedded software and hardware development, industrial machine vision positioning, vision tracking, vision detection, multi-sensor information fusion and other technical methods to achieve the goal of "replacing manual labor with robot". These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency. Technology makes production easier. We pursue a win-win situation. Our mission is to make work easier and more efficient for our partners. We will continue to contribute to upgrading and developing the practical application of new technologies, providing our partners with high quality equipment and professional consulting services. Certifications
Our Service
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Partners
FAQ Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services. Device color support customization.
Q3. What is the services? Pr-sales:Customized solutions, planning and design;One-to-one service After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period? One year warranty except the consuming spare parts.
Q5. What is your payment terms? Normally T/T, L/C, D/P, D/A, Western Union, Money Gram and ******.If you have other payment,please contact me.
Q6. Where does your company located? Both our company and factory are located in Shanghai.

---
