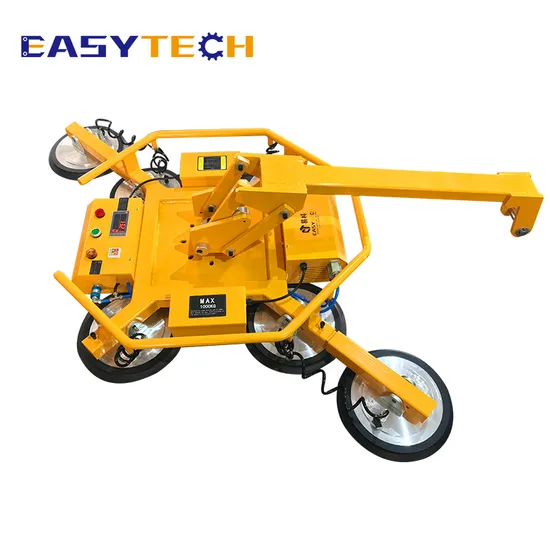

Vacuum Door Glass Suction Lifter Lifting for Glazing Glass Sheet

Product Description

Glass Lifters supplier support OEM&ODM service

Model	ETJSB-G400	ETJSB-G600	ETJSB-G800	ETJSB-G1000
Capacity	400kg	600kg	800kg	1000kg
Suction pad dia.	300mm	300mm	300mm	300mm
Suction pad qty.	4pcs	6pcs	8pcs	10pcs
Dimension	800*850*290mm	1800*850*290mm	1800*1750*290mm	1800*2600*290mm
Turnover	Manual 90	Manual 90	Manual 90	Manual 90
Rotation	Manual 360	Manual 360	Manual 360	Manual 360
Battery	12V	12V	12V	12V
Supply power	220V/360V/380V	220V/360V/380V	220V/360V/380V	220V/360V/380V
Net weight	115kg	127kg	139kg	151kg
Size in wooden case	1230*1040*380mm	1230*1040*380mm	1230*1040*380mm	1230*1040*380mm
Gross weight	137kg	149kg	161kg	173kg
Max Workpieces Size	1300*1300	2200*2200	2200*2200	2200*2800

General Descriptions:
Lifterboy vacuum lifter is specially designed for metal sheet logistics and transportation. They are mainly used for loading and unloading of metal processing equipment such as laser cutting machine and laser machine, as well as warehouse transportation of metal plates, installation of new composite materials such as metal cold storage panels, etc. It can be used with crane, forklift, manipulator, outdoor crane and other equipment, the scope of application is very wide.

So far, we got 3 models of lifterboy vacuum lifter to cover lifting capacity from 150kg to 1000kg.
l Lifterboy Basic, capacity 100kg~200kg
l Lifterboy Light-Load, capacity 300kg
l Lifterboy Heavy-Load, capacity 600kg~1000kg
And each model has 3 supply modes to choose,
-Plug-in type, sustainable use, stable
-Rechargeable, easy to use, good mobility
-Pneumatic, energy saving and environmental protection (need air compressor)

How to choose a vacuum lifter?
* What are you going to lift, size and weight of the workpiece?
* What are you going to do with your workpiece? To lift, turnover or rotation?
* What the vacuum lifter shall be equipped with? Crane, forklift, manipulator?
* Which power supply model do you prefer? Normally, plug-in for in-door use, powered for out-door use, pneumatic needs an air compressor for air supply.

No.	Parts	Specification	Unit	Quantity
1	Lifting Handle	original brand	pcs	1
2	Vacuum pump	original brand	pcs	1
3	Vacuum Air Filter		pcs	1
4	Suction Pads	300mm	pcs	1
5	PLC Pressure Display		pcs	1
6	Blue Vacuum Controller	300mm	pcs	4-10(TBD)
7	Buzzer	original brand	pcs	1
8	Power Switch		pcs	1
9	Alram Lamp		set	1
10	Battery	DC 14.4V	set	2
11	Eccentric positioner		pcs	1
12	Latch		set	1
13	Digital Pressure Gauge	Panasonic	pcs	2
14	Control Handle		pcs	1
15	Beam		pcs	1
16	One-way Valve		pcs	4-10(TBD)

Applications:
# for feeding and unloading to laser cutting machine, flame cutting machine,
shearing machine, etc.
# for stainless copper sheet,aluminum sheet,metal sheet transportation and logistics.
# for stone plate, glass elements, acrylic plate and so on, in-door and out-door use.
√ All parts are wraped in poly paper and marked. √ plywood case with tray and frame to support.
√ With shipping mark on the case. √ Machine coated by paint anti-rust and anti-scratch

FAQ

1.Are you a factory or trading company?

We are manufacturer of metal sheet lifters, glass lifters, crane lifters, auto feeding riveter, Spin Press Riveting Machines and welding machine.

2.How can I get the price?

-We usually quote within 24 hours after we get your inquiry. -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

3. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

4.What is your lead time?

-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

5.What is your payment term?

-T/T, Western Union, MoneyGram, and Paypal. This is negotiable.

6.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.

7.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ; -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
