Smallest High Speed Blow Molding Machine for 10ml-300ml Cosmetic/Medicine/Glue Bottles

Product Description

Product Description
GS-1L-II double station machine is HIGH-SPEED type, which is used to produce a wide variety of materials, such as PE, PP, etc. The capacity of the product can be 10ml-1L, and its production capacity of four head could reach 2000-2200pcs/hr. In accordance with different type of products, die heads can be changed to achieve multi-type production. Setting:
Clamping: Double station +High-precision guide +large arm cylinder axle
Extrusion system: Hard gear surface reducer +Japan inverter
Die system: Central-incoming extrusion die with special steel
Hydraulic system: Japan hydraulic valve seal and proportional control
Control system: Japan PLC +Imported HMI+PLC automatic 1. The maximum blow volume is 500ML, PE, PP, EVA , TPU, etc. can be used.
2. Taiwan DELTA servo system, could save energy consumption 20% for option
3. Different screws and die mandrels, channel styles will be designed based on the specifics of different plastics;
4, It is convenience to refueling, change color, purge, disassembly and cleaning with those die head. Symmetry part of the wall thickness is very uniform;
5, Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
6, Clamping mold is achieved with scissor toggle mechanism, mold carriage is with high-precision linear railway guide, every part of template bears the similar clamping force,
7, Extruder platform can be lifted, easy to adjust the parison length
8. Whole blow pin frame could be turned over onto top platform, convenient for mold change.
9, Design is based at CE safety standard, concerning about user safety;
10, Inverter is from Taiwan DELTA, adjust the screw speed, saving energy ;
11, automatic lubrication system, automatic alarm function, more concerned about the user;
12, Equipped with high temperature alarm function.
MACHINE ADVANTAGES
1. with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform

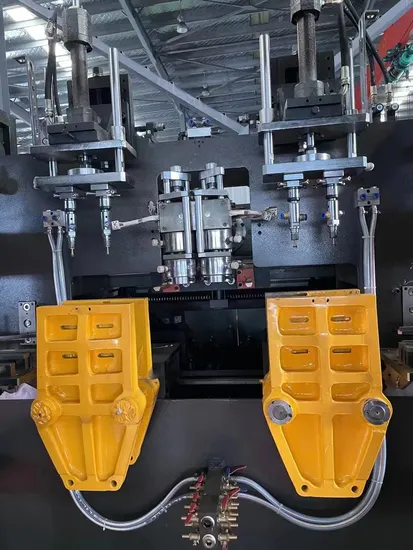

6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality. Detailed Photos
Product Parameters

Specification		GS-1L-II
Material		PETG
Max.container capacity	L	1
Number of die	set	1,2,3,4
Machine Dimension	m	2.56×1.8×2.24
Total weight	ton	2.5
Die head		GS-1L-II
Number of die heating	zone	2
Power of die heating	KW	1.3-2.6
Max die-pin diameter	mm	70
Center distance of twin-die	mm	100
Center distance of tri-die	mm	70
Center distance of four-die	mm	50
Clamping Unit		GS-1L-II
Clamping force	KN	30
platen opening stroke	mm	110-260
platen size	mm	260×210
Max mould size	mm	280×210
Mould thickness	mm	110-150
Extruder Unit		GS-1L-II
Screw diameter	mm	45
Screw L/D ratio	L/D	24:1
Extruding Volume	Kg/hr	25
Number of heating zone	zone	4
Extruder heating power	KW	4
Extruder driving power	KW	7.5
Power consumption		GS-1L-II
Oil pump drive power	KW	5.5
Fan power for screw	KW	-
Total power	KW	18.6
Air pressure	Mpa	0.6
Air consumption	m³/min	0.4-0.6
Average energy consumption	KW	10
Cooling Water Consumption	m³/m	0.8

Certifications
Packaging & Shipping
Company Profile
Great Supreme Industry Limited is an enterprise professionally manufactures HDPE blow moldingmachines, Injection machine and Plastic molds. We are devoting ourselves to technical research in order to build up a good reputation & famous brand. have already established business relations with more than 80 countries in Asian, Middle East, Africa, South America, European. There are departments special for machinery development and plastic molds development. foreign advanced technology and management system, under advantage of our solid technical power (professional engineers, large-scaled workshops, good design techniques), we are capable of having been developing different models of blow molding machine to supply the best quality products and service to the customers. High quality but reasonable price has been widely approved by our customers both in home and abroad. -Extrusion blow molding machine is for 50ml-200L PE/PP bottles, jerrycans, and drums.
-Engineer is available to overseas for installation, commissioning, and short-term training.
-All easy-wearing parts or components are available in our own warehouse.
-We guarantee the quality, and provide good service to customers.
Our Advantages
1. Toggle-balanced clamping frame, with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality.
After Sales Service
-Installation & testing
A technician shall be sent to test the machine till it can work normally upon buyer's notification when everything is ready for installation and testing. The buyer shall bear all the charges involved since the technician leave off seller's company till he gets back, charges including transportation expenses, visa fee, accommodation, and insurance, etc. If the technician is required to go abroad, USD 120/day shall be charged as the service fee within the same time period stated above.
-Warranty & Guarantee
We provide 2 years guarantee since machine is running normally at buyer's factory.
The seller shall deal with all the problems due to the quality of the machine within the guarantee
period, with the damaged parts (unit price > USD 50) sent back for new ones.
Our company act strictly according to the requirement of ISO 9001 quality system with every spare part registered before shipment so as to assure prompt service.
24hours online for technical support

---
