Top Grade Toilet Paper and Kitchen Towel Production Line

Product Description

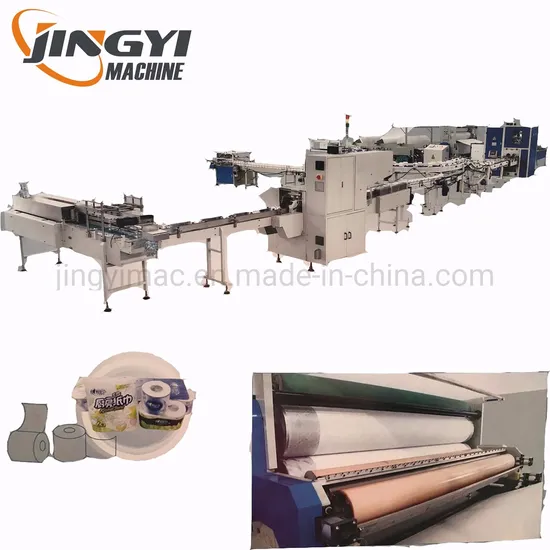

Full-automatic Toilet Paper And Kitchen Towel Top Grade Production Line
This production line are consist of full automatic rewinding machine, accumulator, automatic log saw and multi packing machine. Automatic loading material to finished cutting and packing output, whole line cooperate smoothly, stable performance, all automatic by machine, more save manpower, and reduce the labor intensity and improve production efficiency. it's a best choice for production of toilet paper and kitchen towel products.
1.Automatic Roll Core Machine Functions and features: This is a preferred equipment for producing core for toilet paper, plastic PE film and N.W. to use. Inverter control to ensure the accuracy of the roll core tube length Automated online gluing,tube rolling and cut off Product diameter and length can be customized according to customer needs The machine is reasonable designed, easy for operation and convenient maintenance Main technical parameters :

Design speed	20 m / min
Stable speed	18 m / min
kraft paper width	50~70mm
Paper Tube diameter	25mm~100mm(can be customized)
Paper tube layers	2 ~ 5 layers(choosen by customer)
Kraft paper gsm	200-400 gsm
Roll core Length	adjustable (maximum: 3m)
Defect rate	≤2%
Voltage	380V 50HZ
Power	4.0KW
Overall Size	Main machine 2950×1700×1800mm Glue tank device 1250X850X1200mm
Weight	1500Kg

2. Toilet paper machine
Automatic Toilet Paper And Kitchen Towel Rewinding Machine Equipment Description:
Main Technical Parameter:

Max jumbo roll width	1750mm (other size can be ordered) Can order from 1200mm to 2800mm
Max jumbo roll diameter	φ1100mm(for bigger size can be ordered)
Jumbo roll inner diameter	3inches (76.2mm)
Finished products diameter	φ90-140mm
Roll core diameter	38-48mm (other size can be ordered)
Production speed	0~180m/min
Machine power	18kw (depends on machine model)
Roll core unit	With or without roll core
Jumbo roll stands	1~3 stands (standard is 2)
Embossing unit	Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller)
Jumbo roll loading	With air cylinder loading
Parameter setting	Man-machine interface operation, Touch screen
Machine overall dimension	10000*3000*2000mm
Machine weight	12T (approximately)
program controlling	PLC
air system	0.5-0.8Mpa
perforation pitch	4 pieces of anvil blades

3. High-speed Log Saw Machine
Machine main technical parameters:

Machine model	JY-JTZ-DHX
Toilet paper rolls length	1750mm-2800mm(other sizes can be ordered)
Toilet paper rolls diameter	φ100-115mm(other sizes can be ordered)
Design speed	150cust/min (2rolls/cut)
Stable production speed	100cust/min (2rolls/cut)
Cutting blade grinding system	pneumatic sharpen, grinding time can be set on screen
driving system	Delta servo motor
Machine power	11KW
Machine size	About 6500*2500*2000mm
Machine weight	About 4.5T

4.Single roll Toilet paper packing machine
Machine main technical parameters:

Technical Specification	Description	Remarks
Application Range	Single Toilet paper with core or coreless
Feeding type	Automatic Feeding System	V Grade
Design Speed	0-220rolls/min	Depends on the roller size
Stable Speed	With core:0-180rolls/min Without Core:0-120rolls/min
Packing Film Structure	Double Rollers
Toilet rolls diameter	80mm-130mm
Roll length	Withcore:80-220mm without core:80-170mm
Module	2Sets	Roller Diameter:80mm~120mm
Dimension	5500mm*3300mm* 1600mm
Weight	About 1800KG
Packing material	Double side air through BOPP,SPP, CPP	Choose by buyer
Film thickness	0.018mm-0.03mm	Choose by buyer
Roller Max Dia.	380mm
Roller Inner Dia.	70-76mm	National Standard
Film Roller Max Width	430mm
Voltage	220V/50HZ	National Standard
Total Power	About 12 KW
Cutting blade	Double blade

5.Toilet paper multi rolls packaging machine
Machine Main technical parameter:
single roll size: customizable (length, diameter need to be selected).
Packing method: two lines, one or two layers, can pack from 2 to max 24 rolls
Voltage: 220V, 50Hz
Main power: 2KW
air Pressure :0.6MPA
Packing speed: 8-10 bag/min
Machine size: 7000*1300*1400mm
Weight :700KG
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Fiona Hou

---
