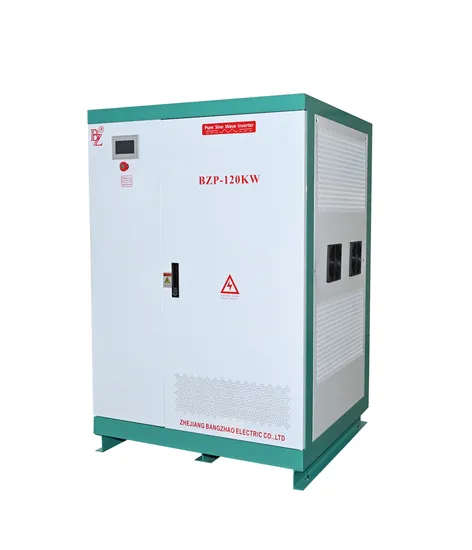

300-700VDC to 127/220VAC 100kw 3 Phase Hybrid Power Inverter with AC Bypass for Solar Inverter System Passed CSA22.2 & UL-1741 Standard off Grid Inverter

Product Description

Company Profile Bangzhao Electric Co.,Ltd is a company who was established in 2008 and specialized in developing and supplying of power products. The high performance of its products stems from the cutting-edge technology developed by the domestic top 100 engineers. During the past 10 years, we have been providing the best system solutions of Life PO4 battery pack cabinet,Boat inverter ,Car inverter,Solar inverter,Wind-Solar Hybrid inverter,lithium battery charger,PWM/MPPT solar charge controller,PV pump inverter,Explosion-proof inverter,DC combiner box,AC to DC battery cabinet ,Single Phase to 3 Phase Converter,Lithium battery storage system etc. to customers, it is widely applied in the industry of solar energy,wind power,water power,car,ship,train,hospital, aviation,automation,etc.
Product Description Our BZP series is one of the most advanced DC to AC conversion products in the world, it is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine and other renewable energy systems and etc, can supply power and provide guarantee effectively for the areas with traffic inconveniences, in the mountains, pastoral, border, island and other areas without electricity. It has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is high efficiency and low no-load loss, and no pollution. The inverter can also supply AC power to all kinds of electric equipment, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.
PV Off-grid Solar Power System PV Off-grid solar power generation system including solar panel array, solar charge controller, storage battery, Off-grid inverter, etc. In the sunshine, the solar panel convert the solar energy to DC power and charge the battery group by the charge controller. Then the off grid inverter convert the DC power into AC power for power supply the AC load.
Product Parameters 1.Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, It withpowerful protection function for short circuit, over load and over temperature which is more safe and reliable.Longer service life can up to 15-20 years or more.
2. Intelligentized, modularized and simple structure design, very easy and convenient for maintenance.
3. Two kinds of start mode: Step Down Voltage Start and Variable Frequency Start.
Variable Frequency Start is suitable for inductive load with big instant inrush current(such as
motor), inverter's power not need enlarge too many times when take motor induction load. This function save the cost of frequency converter's usage, easy to connect wires and control.
4. The output frequency 50Hz/60Hz can be set via LCD panel.
5. The output voltage can be set between -40 % to +20 % of rated voltage. And the accuracy of output voltage is very high less than 1%.
6. The DC input voltage range can be set. over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point and under voltage recovery time all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries and solar panel in the future.
7. Wide input voltage can be selected from 100-400v or 300-850v. This wide voltage inputoff grid inverter can work without battery and solar charge controller, which save battery cost and same like with MPPT function can maximum make full use of solar power.
8.Pure sine wave output. with good transient response less than 50MS, little harmonic
distortion, higher conversion efficiency and stable output voltage.
9. Low frequency transformer, which ensure the AC busbar and DC busbar are completely
isolated, inverter with higher efficiency >94% and very little no-load loss.
10.Powerful data display and fault instruction function. LCD can display the DC input
voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
11. AC bypass input function optional: Battery Power Priority or AC Bypass Priority work mode can be set.
12. RS485 remote monitoring function optional
13. Solar charge controller and AC to DC battery charger built in optional for customer
14. Can be customized to customer's specification.
[Optional] RS485 remote monitoring AC Bypass input Built in solar charge controller and AC to DC battery charger

Model		SDP-100KW
Isolation mode		Low Frequency Transformer
DC Input	Rated voltage (Vdc)	540V(300-700V)
	Rated current(A)	185A
AC Input	Rated voltage(Vac)	220V 3 Phase
AC Output	Rated output power	100KW
	Output waveform	Pure Sine Wave
	Rated Voltage	127/220VAC±3%
	Phases	3 phase 4 wire
	Rated current(A)	262A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	380/400/415/440VAC optional
	Power Factor(PF)	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>92%
	Waveform distortion rate (THD)	<3% linear load
	Dynamic Response (0 to 100% load)	5%,≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP20(indoor)
	Working Altitude(m)	≤2000
	Working temperature	-25~+55ºC
	relative humidity	0~90%,non-condensing

Above parameter only for reference ,could be custom made to user specifications.
Canadian and USA certificate:
300-700VDC to 127/220Vac 100KW 3 Phase hybrid inverter for American Standard Loads passed CSA-1741
Standard Wiring place picture:
IP45 outdoor type:
Packing picture:
Detailed Photos
LCD Parameter :
also can working no battery off grid system:
Certifications CSA/UL1741 standard :
Company other certificate:
Installation Case

---
