Paddy Rice Coffee Bean Seed Gravity Separator

Product Description

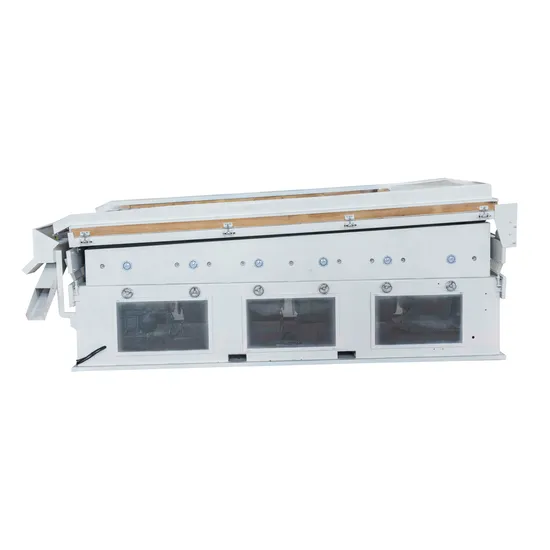

Seed Gravity Table Separator
Introduction of Seed Gravity Table Separator Machine
Seed Gravity Table Separator Machine is the blowing type grain gravity separator, Paddy coriander seed gravity separator machine is used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed and grain which will be used for sowing.,
Application of Seed Gravity Table Separator Machine
Seed Gravity Table Separator Machine can be used effectively to remove partially eaten, immature shriveled or broken seeds to ensure maximum quality of the final product. Gravity separator can be used to separate and standardize all kinds of seed and grains, coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
Seed Gravity Table Separator Machine is also an efficient and durable choice for a wide variety of applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts. Working Principle of Seed Gravity Table Separator Machine
The grain gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of Seed Gravity Table Separator Machine

Capacity(Count by wheat)	10000 kg/h
Sieve Table Dimension	3900*1550 mm
Total Power	15 kw
Motor for build-in Air Blower	Six air blowers (1.5KW*3+1.8KW*3=9.9KW)
Motor for vibration	4.0kw Y132M1-4
Motor for Good Grain Release	1.1kw Y90S-4
Lateral angle of inclination	3°~6°
Longitudinal angle of inclination	0~6°
Amplitude	7mm
Dimension (L*W*H)	4300×1960×2500 mm
Weight	2500kg

Photos

---
