Battery Power Electric Remote Control Hydraulic Lifting Vacuum Lifter

Product Description

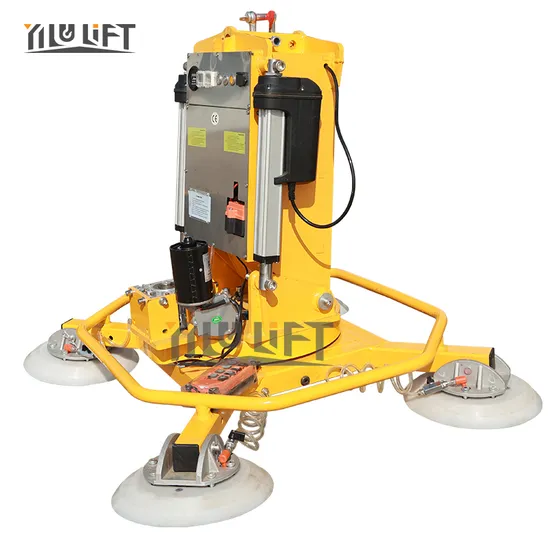

YILU X Shape Full Electric Vacuum Suction Cups Lifter
YILU X vacuum lifters use vacuum power to grip and lift loads. The vacuum technology offers sustainable, safe and efficient handling of most types of goods. Vacuum lift systems make lifting easy for everyone, regardless of their size, strength, or gender.
Product Parameters

Model		GL-SC-400F	GL-SC-600F	GL-SC-800F	GL-SC-1000F	GL-SC-1200F
Lifting Capacity	kg	400	600	800	1000	1200
Cup Qty	/	4	6	8	10	12
Single Cup Size	mm	300	300	300	300	300
Single Cup Capacity	kg	100	100	100	100	100
Rotation	/	360° Electric rotate
Tilting	/	90° Elextric
Volte	V	DC12
Charger	V	AC220/110
Weight	kg	70	90	100	110	120
Sucker Frame Size	mm	850*750*300	1800*900*300	1760*1460*300	1900*1600*300	1900*1600*300
Extension Bar Length	mm	500
Control System	/	Integrated Control Cabinet and Wired/Wireless Remote Control
Package Size	mm	1230*910*390
G.W	kg	97	110	123	150	163

Advantages
1.Silica gel raw material suction cup imported from the United States, good adsorption, anti-aging.
2.American Thomas vacuum system control, safe and efficient
3.High-power pole design, strong thrust, easy to flip
4.Japan Panasonic vacuum sensor, with automatic pneumatic stop function, sensitive response and stable performance
5.Equipped with a vacuum accumulator, the pressure holding time is long and the use is safer
6.Two 12V20Ah large-capacity batteries, sufficient power
7.24v Charger with Smart Repair
8.Each suction cup has a vacuum control valve which can be controlled individually for easy maintenance
9.The suction cap position is adjustable, suitable for different sizes of glass
10.Wireless remote control is easy and safe to operate
11.Suction cup holder can be extended (H type)
12.Not suitable for rainy days

Full-load operation is possible thanks to Thomas's dual vacuum system design. The electric glass suction cup has a wireless remote control, which can wireless operate suctiondeflation,rotation, flip and other functions.The glass suction cups are packaged in a specially designed plywood box for easy transportation.


Glass panels come in many shapes and sizes. When you are installing glass panels, you want to be assured of a lifter that can handle various sizes. The YILU LIFT offers a solution. Thanks to its removable extension beams and USA silicon suction pads, this lifter can quickly adapt to various glass sizes.



Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the vacuum lifter family to better serve our customers unique needs. If you have a lifting need, we have a solution.

FAQ

1: How to place an order?

Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.

2: What is your price?

Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP)

3: How should I pay?

Answer: We accept wire transfer; letter of credit; Paypal; Wetern Union.

4: What is the delivery time?

Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us.

5: About the warranty

Answer: 1-year warranty. Lifelong technical support via email or video.

6: About the guarantee

Answer: MIC will protect the order. We have trade assurance.

7: Mode of transportation

Answer: You can choose sea, air, rail transportation.

---
