Topstar Tdh Series Honeycomb Rotor Wheel Dehumidifier / Dryer Machine for PC PBT Pet Nylon

Product Description

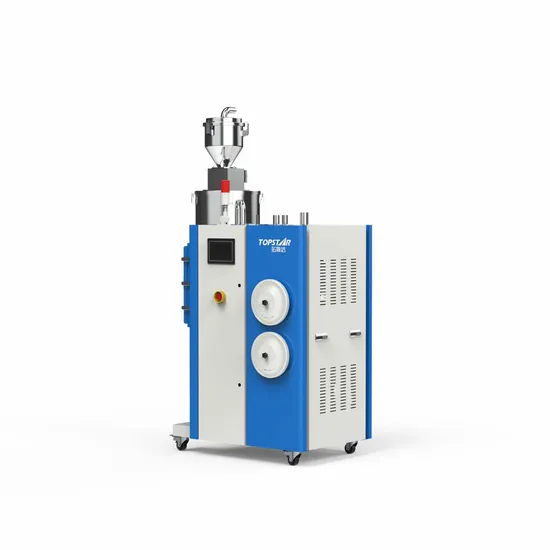

Topstar TDH Series Honeycomb Rotor Wheel Dehumidifier / Dryer Machine
What is Honeycomb Rotor Dehumidifiers?
Honeycomb Rotor Dehumidifier is mainly to work with hopper dryers together which are specialized for drying engineering plastics to contain high hygroscopicity such as Nylon, PC, PBT, PET etc. It adapts high efficiency rotor which can ensure dew-point at -40°C with stable dehumidifying effect. The drying air flow ranges from 50~2000 m³/hr.

TOPSTAR 3 in 1 Dehumidifying Dryer Models
TDA Description
TDA working principle schematic diagram
Design concept: to absorb water and release water through the characteristics of chemical substances, so as to achieve a stable dew point. The dew point is ≤ -40 degrees Celsius. AI2O3 and molecular sieve are combined to form a powerful dehumidifier. The biggest advantage of this machine is energy saving and no pollution to the workshop environment. According to the usage, the machine needs to replace the molecular sieve regularly (every 3-5 years).
Dimension Choose:

Model	TDA-25	TDA-50	TDA-75	TDA-100	TDA-150	TDA-200	TDA-300
L(mm)	917	953	1158	1158	1280	1280	1690
W(mm)	766.5	766.5	836	836	942	942	1200
H(mm)	1767.5	1960	1898	2160	2156	2516	2662

TDB Description
TDB working principle schematic diagram
The honeycomb runner is divided into 3 working areas: dehumidification, regeneration and cooling. The 3 zones rotate cyclically. And the dew point is stable at -40°C around. The main body of the honeycomb rotor is made of an inorganic fiber base material into a honeycomb shape, and then molecular sieve and high-precision silica gel are strongly adsorbed inside the honeycomb through high temperature crystallization and sintering, which has extremely high moisture absorption capacity. The entire surface is covered with countless net-like voids, which not only has a great moisture absorption effect, but also has the function of fire prevention and acid resistance.
Sketch of internal structure
Company profile
Guangdong Topstar Technology Co., Ltd.(Abbr. TOPSTAR, stock code: 300607)is the first robot key enterprise listed on GEM in Guangdong province, focusing on the R&D, manufacturing and sale of the industrial robots as the representative of intelligent equipment, dedicated to system integration, product manufacturing, software development and industry internet -- four in one intelligent manufacturing integrated service provider.
TOPSTAR adheres to the brand advocate " Making industrial manufacturing better" and the core value "one year investment return for the automation solution". The core products include intelligent equipment represented by industrial robots, industrial internet of things software represented by control systems and MES, providing customers with turnkey solutions for intelligent production environment based on industrial robots and creating a healthy intelligent manufacturing ecosystem.
There are more than 30 sales and service branches all around the country, and serving for 5000 customers, including Midea, BYD Auto, CHANGCHENG Auto, BIEL, etc.
Thanks for your attention, any question or much more details, please feel free to contact us! We will reply you within 24 hours. Thank you!

---
