High Quality Hydraulic Continuous Helical Spiral Screw Flight Blade Cold Rolling Machine

Product Description

Screw Blade Machine
Product Description The screw blade machine is used for processing sectional screw. This line includes hydraulic system,mechanical system and electric control system. The hydraulic system drives moulds on the foundation to reciprocating move, and this makes two moulds interactional to change steel plate shape to be screw. One set mold will match one size of screw,on the screws process. It is easy to operate, has high production efficiency and great working accuracy, and ect.

Product Parameters

Model	HYD-30
The thickness of steel belt	≤30mm
The width of steel belt	≤450mm
Inner diameter (ID)	≥30mm
Outer diameter(OD)	≤1500mm
The screw pitch	35-1000mm
Power	11kw
Operation Manual in English: 1 set Operation Tools: 1 set Electrical Control Box: included Electrical Components: Zhengtai, Top Brand of China Siemens:Optional
Exw Works Price
Payment terms	30%TT as prepayment, 70%TT before shipment
Delivery terms	Within 25days after getting prepayment

This motor is for hydraulic pump , it drive hydraulic pump for position selector valve and pressure regulating valve.
1.Pressing and sliding block
This parts is made of sliding block and support guide rail. The hydraulic cylinder drives sliding block reciprocating moving, then drive mould to work on the steel plate. There is a route control button to control this block. The block route length will change screw's pitch. 2.Mould
we will make mold according to screw blade size
3.Electric control system
The control system is connected with oil pump. The control way is foot step type button, one is for forward moving, and the other one is backwards moving.
The structure of equipment
Hydraulic system
This parts is as main power of whole line, motor 11kw

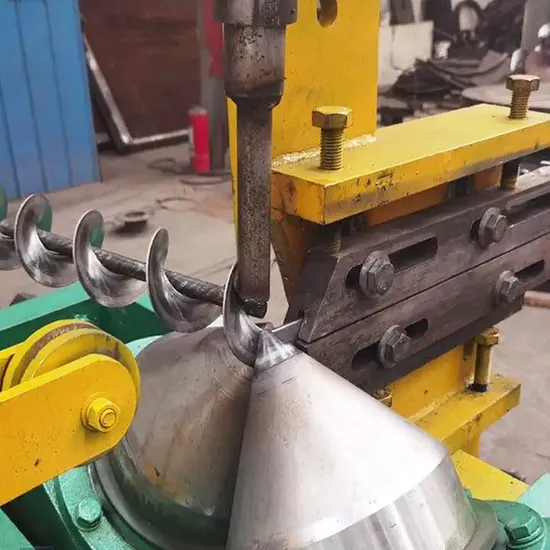

Detailed Photos
FAQ Q1: What is the purpose of a Screw Blade Machine?
A1: A Screw Blade Machine is used to manufacture screw blades, which are essential components in various industries, including manufacturing, construction, and automotive. Q2: What are the key features of a Screw Blade Machine? A2: The key features of a Screw Blade Machine include high-speed production, precision blade forming, versatile tooling options, and automated operation. Q3: What are the advantages of using a Screw Blade Machine? A3: The advantages of using a Screw Blade Machine include increased productivity, accurate and consistent blade forming, customization options, and cost-effectiveness in screw blade production. Q4: Can you provide some details about the blade forming process? A4: The Screw Blade Machine utilizes specialized tools and techniques such as rolling or cutting to shape the metal into screw blades with precise dimensions and threading. Q5: How does a Screw Blade Machine ensure accuracy in blade forming? A5: Screw Blade Machines are equipped with advanced control systems that allow for precise adjustment of parameters such as blade size, pitch, and threading, ensuring accuracy in the final product. Q6: What specific industries benefit from using a Screw Blade Machine? A6: Industries such as manufacturing, construction, automotive, and aerospace benefit from using Screw Blade Machines for applications like screw production, assembly line manufacturing, and repair and maintenance. Q7: What are the key details to consider when choosing a Screw Blade Machine? A7: Key details to consider include the machine's production capacity, versatility in blade sizes and types, control system features, maintenance requirements, and the machine's overall durability. Q8: How can a Screw Blade Machine contribute to operational efficiency? A8: A Screw Blade Machine offers fast production speeds, precise blade forming, automation capabilities, and the ability to handle various blade sizes, resulting in increased productivity, reduced labor costs, and improved overall efficiency.

---
