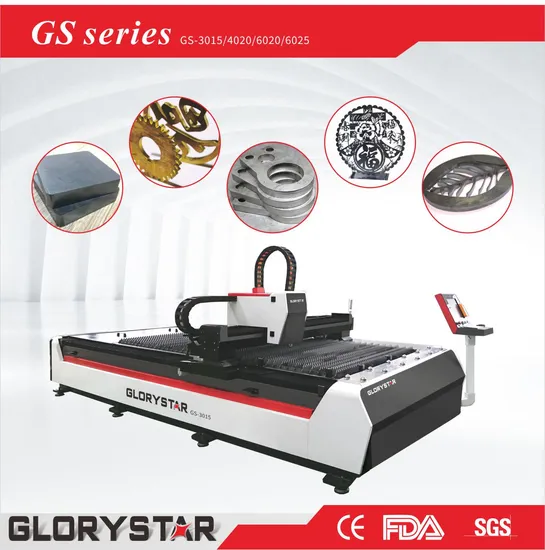

CNC Laser Cutting Machine with Japan Panasonic Servo Motol

Product Description

CNC Laser Machine Japan Panasonic Servo Motol laser cutter japan
Product Features

The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming
Imported high precision ball screw transmission / rack & pinion, high precision linear guide rail
Imported servo motor and drive, imported high-rigidity precision gearbox.
Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area
Modular structure of laser generator, high performance and free from maintenance
Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.
Accessories
Technical Table

Model No.	GS-3015
Laser Power	1000-3000W(Optional)
Working area	3000*1500mm
Total Power Consumption	<9KW
Transmission Mode	Rack & Pinion, Dual Drive
Voltage and Frequency	380V 50Hz(60Hz)
Dimension	4200*2320*1620mm

Applicable Materials
Mainly applicable for non-contact and fast cutting, hollowing and punching of carbon steel, stainless steel, steel alloy, galvanized steel and metal pipes etc.
Applicable Industry
Widely used in all kinds of metal cutting industries such as metal working, kitchen and bathroom wares, advertising & signs, lighting & hardware, electrical cabinets, auto parts, machinery and equipment, appliance, precision parts and so on.
Sample Show

GLORYSTAR 1000W FIBER LASER CUTTING THICKNESS
Materials	Thickness(mm)	Cutting speed (m/min)	Auxiliary Gas	Air pressure (bar)
Carbon steel	0.5	50	Air	6
	0.8	28	Air	8
	1	23	Air	10
	2	6.5	O2	3.5
	3	3.5	O2	0.5-1
	4	2.3	O2	0.5
	5	1.8	O2	0.5
	6	1.4	O2	0.5
	8	1	O2	0.5
	10	0.8	O2	0.5
	12	0.65	O2	0.5
	14	0.6	O2	0.5
Stainless steel	0.5	50	N2	7
	0.8	33	N2	10
	1	25	N2	12
	2	8	N2	15
	3	2.8	N2	18
	4	1.2	N2	18
	5	0.8	N2	18
	6	0.45	N2	18
Stainless steel	0.5	55	Air	8
	0.8	38	Air	9
	1	28	Air	12
	2	8.5	Air	15
	3	3.3	Air	18
	4	1.35	Air	18
	5	0.9	Air	18
	6	0.5	Air	18
Aluminum	0.5	25	Air/N2	8
	0.8	18	Air/N2	9
	1	12	Air/N2	12
	2	3.5	Air/N2	18
	3	1.5	Air/N2	18
	4	0.8	Air/N2	17
Brass	0.5	30	N2	12
	0.8	17	N2	12
	1	12	N2	15
	2	3	N2	18
	3	1.3	N2	18
Copper	0.5	18	O2	12
	0.8	12	O2	12
	1	6	O2	12
	2	1.5	O2	15

1kw cutting Carbon Steel 14mm 12mm 8mm 4mm 6mm

---
