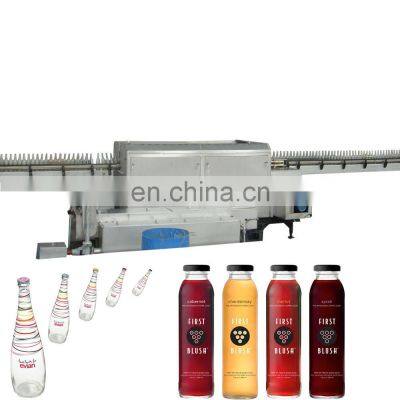

Automatic wine glass bottle washing machine / plant / washer with remove label

Product Description

Product Description
Automatic wine glass bottle washing machine / plant / washer with remove label
Product Description
Advantages of equipment:
1.Bottle in adopts the brace rocker with the self rotation structure, which overcome the dead point of the quadruple connecting rod to make the bottle in stable.
2.Bottle out adopts the connecting rod .The bottle comes out from the buffer cushion first and then it is transported through the bottle clamp and is pushed to the bottle conveyor through the guiding track at last. It works stably.
3.Many dipping troughs: one pre dipping trough, three lye troughs and one hot water dipping trough.
4.Several times shower makes the shower fully from the inner to outer part. One group of the pre shower, three groups of lye shower, one group of middle water shower, hot water shower, warm water shower, cold water shower and aseptic water shower.
5.Several showers and dipping troughs layout ensure the space for the temperature climbing and falling of the bottles. Thus it reduces the bottle brake rate.
6.The shower adopts the rotary showering way to make the rinsing fully on the inner and bottom part, which increase the cleaning rate .And it also avoids the nozzle block and showering point shifting which the main transmission chain pace changing result in.
7.Fifth label flushing, third label removal: There is the inner and outer cavity structure. It also adopts the high flux pump and wide nozzle, which makes the huge liquid level difference. And thus the label is removed through the label net while the recycle using rate of lye is high.
8.Heating system includes three heat exchangers. While the heat exchanger uses the lineal display pipes .The water is filtered through the label net, which avoids the block .The recycle water returns to the high flux pump and mixes with the lye. Because it adopts the lineal display pipe heat exchanger, so it reduces the maintenance work to the furthest.
Machine show:
Detailed structure of inside brushing machine
Cleaning bottle
Oil-fired steam boiler
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find reused glass bottle washing machine ?
A1: Looking for glass bottle washing machine in www.grandeemachine.en.china.cn
Q2: Which kinds of glass bottle washing machine we have?
A2: 2000 bottles per hour or 5000-6000 bottles per hour
Q3: How to confirm the bottle shapes, label materials for washing machine ?
A3: Confirm the glass bottle is round shape with bottle sizes from 200ml to 1000ml, bottle
Height is not more than 110mm, bottle diameter is not more than 340mm. Label material should be wet glue paper, sticky label is also no proble for our washing machine.
Q4: Which other extra equipment need for this washing machine?
A4: Oil fried boiler will be required to generate steam to remove the labels
Q5: Are you a trading company or a manufacturer?
A5: We are the manufacturer of water / beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service , professional salesman team .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare pats?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
If you are interested in our machines, please send your inquiry

---
