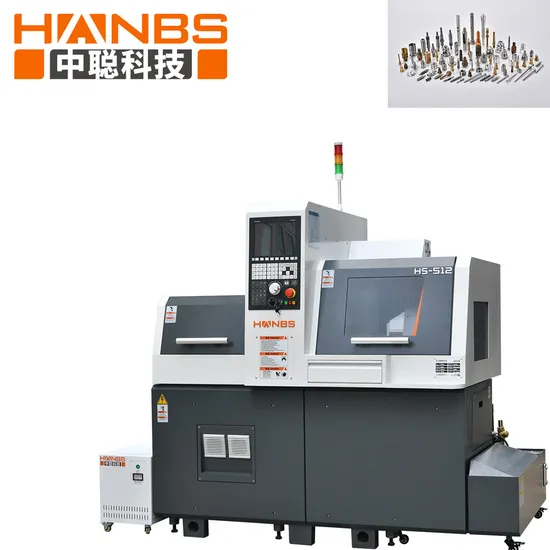

Hanbs Swiss CNC Lathe with Rigidity and High Processing Accuracy HS-512

Product Description

Hanbs Swiss CNC Lathe with Rigidity and High Processing Accuracy HS-512
Product description:
Efficiency: With its automated and computerized process, CNC machining is much faster than traditional methods. Additionally, the machines can run continuously, reducing production time and increasing output.
Precision: With CNC machining, the possibility of human error is minimized, resulting in highly precise and accurate products. This level of precision is especially crucial in industries such as aerospace and medical, where even the slightest error can have severe consequences.
Versatility: CNC machines can produce a wide range of products by simply changing the program and tooling. This makes them suitable for mass production of standardized products as well as the production of customized and one-of-a-kind items.
Cost-effective: While CNC machines may have a high initial investment, they can ultimately save on labor costs and reduce waste. The precision of CNC machining also means less material is wasted during the production process.

Technical Parameters:
Product Uses

The following are four specific application scenarios of CNCNC Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
Processed Product Display
Product Information

Maximum processing diameter	Φ12mm
Maximum processing length(2.5d in the mode without guide bush	60mm
Axial maximum drilling diameter	Φ5mm
Axial maximum tapping size	M5
Maximum spindle speed(for short-term use only)	10000rpm
Radial maximum drilling diameter	Φ5mm
Radial maximum tapping	M4
The maximum clamping diameter of the back spindle	Φ12mm
The maximum workpiece extension of the back spindle	30mm
The maximum drilling diameter of the back spindle	Φ5mm
The maximum tapping diameter of the back spindle	M5
The maximum speed of the back spindle(only for short-term only)	12000rpm
The maximum take-out length of the workpiece	40mm
Side powered tool unit	3
Knife row(12*120*5+6*120*1)	5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back)	13
The maximum number of tools installed as standard	21
Z1,Z2,X2,Y Axis fast forward speed	24m/min
X1 Axis fast forward speed	18m/min
Spindle center height	1000mm
Input power	7KW
Weight	1500kg
Dimensions(WXDXH)	1950*1100*1700mm

Packaging & Shipping
Certifications
patents
partners


loading & shipping
FAQ
1. What is the delivery period?
R: In general, the delivery period is about 30-45 working days.
2. What are the after-sales services?
R: We have a professional technical team that can solve your problems online 24 hours.
3. Does the product accept customized service? What aspects can be customized? (Such as color, shape, size, etc.)
R: Yes, customized service is feasible, such as printing your company logo and so on.
4. Do you accept small orders (or what is the minimum order quantity, etc.)?
R: Yes, we can also provide 1 set of machine.
5. How many years of production experience does your company have?
R: More than 10 years, we have several professional and experienced technical instructors to provide you with after-sales guidance.
6. What are the characteristics of the material of this product?
R:Our Swiss Lathe machine has been CE certified, and the geometric accuracy of the machine tool is in accordance with the factory standards and the Chinese General Rules for Metal Cutting Machine Tools GB/T1742.1-1998 (International ISO230-1-96).

---
