Hot Sale Automatic High Speed Steel Wire Straightening and Cutting Machine

Product Description

Product Description

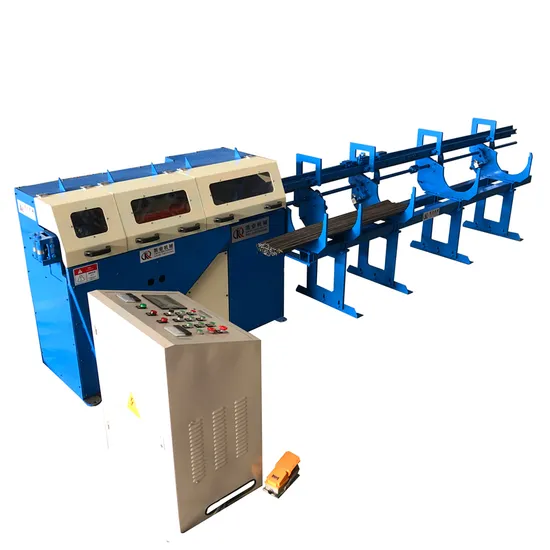

High speed wire straightening and cutting machine
Compared with the ordinary straightening equipment, the structure of high-speed steel wire straightening and cutting machine is more reasonable, and the style also has a new concept, mainly because of a dynamic factor. High power with excellent machinery improves the output and quality of products.High speed steel wire straightening and cutting machine, whether it is gear, straightening wheel, pressing wheel, cutter, casting or other parts, should be more excellent in raw materials and more prominent in manufacturing accuracy.
Excellent performance of high speed steel wire straightening and cutting machine:
1.There is no error in the length of cut steel bar.2. Double head pull type. 3. The next one meter of reinforcement is adjusted and pulled out. 4. Tungsten steel mould is used for construction wire. 5. The product wire adopts ball end die, and the steel bar will not damage the surface.
Machine Features
Features of high speed steel wire straightening and cutting machine
* 3.0-6.0 mm is 90-110 m / min. * Within the industry, the calibration error is only ± 1 mm. * The operation of numerical control equipment is simple. * Stable and reliable quality,durable. * High efficiency and fast service.
Our machinery is widely used in high-speed railway, expressway, bridge tunnel, rail transit, underground pipe gallery, nuclear power, hydro power and other large-scale infrastructure construction and prefabricated buildings, steel processing and distribution center and other fields.
Size Information

Model	KY-HSC-3/6	KY-HSC-6/12
Wire diameter (mm)	3.0-6.0 mm	6.0-12.0 mm
Cutting length (m)	0.8-3.0 m	0.8-12.0 m
Straightening speed (m/min)	80-110 m/min	80-110 m/min
Straightening accuracy (mm/m)	≤1 mm	≤1 mm
Length accuracy (mm)	±1 mm	±1 mm
Power (kw)	5.5KW+2.2KW+2.0KW	30 KW+7.5 KW+5.0KW

Details Images
Mechanical protection modeling:All high-speed mechanical parts are covered with protective cover to avoid danger to operators.
Wire collection rack:The standard length of steel wire collection shelf is 3 meters, we can customize the length of 6 meters and 12 meters, or even longer according to customer requirements.
Control cabinet:The control cabinet can easily adjust the running speed of the machine and the cutting length of the wire.
Pay off rack:At the bottom of the pay off frame, the bearing can bear more than 1000 kg.

Pneumatic components: Part of the mechanical action using pneumatic control, can achieve better sensitivity.
Length accuracy:The length precision of wire products can reach ± 1 mm.The wire length is accurate and the appearance is beautiful.
PACKING AND SHIPPING
★★★Packing in wooden cases:For individual machinery orders, we will pack them in wooden cases and send them to the designated port.
★★★Container delivery:If High speed wire straightening and cutting machine and other equipment are ordered, we will fix them in containers and transport them to the port.
Company Introduction
Company Profile
Hebei Kaiye Machinery Equipment Co., Ltd was established in 1998. It is a professional manufacture and exporter which is concerned with the design, development and sale of wire mesh welding equipment. Our products comply with international quality standards and they're greatly appreciated in a variety of different markets throughout the world. With huge R&D team, excellent sales staff and professional after-sale service, our company can solve all the worries for customers.
The Factory And The Main Products
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, Diamond mesh machine, pneumatic spot welding machine and straightening & cutting machine.
Market and Customers
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil. FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our technology development department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport,etc, your customs clearance will be no problem.
