VSP series single shaft shredder and crusher machine for hard block material PE PVC thick wall pipe

Product Description

Product Description
This machine is single shaft shredder machine .
some plastic material is hard crushing for crusher machine ,we can used this machine to it.
it can shredder plastic pipe,plastic lump,plastic barrel,plastic drum etc.
Working principle
Material was feeding on the machine top by rubber conveyor belt,the shaft will Constant speed with 83 RPM.It have a set cart which was link hydraulic system by screw.the cart will push material to rotor shaft shredding by hydraulic system. screen diameter was 60mm,when the size less than 60mm,it will drain out.
Shredder machine advantage:
1. Use Siemens PLC control system to control running and overload protection and auto reverse
2. Use Big hopper to suit for many type material, Precisely processed combined frame made of extra-thick plates,
3. Use Unique hydraulic pushing system .
4. Each Move blades has four cutting edges, Blade made SKD-II or D-2
5. Use name brand reduction box and Quiet operation with low speed
6. Use NSk bearing for shredder machine(original imported, made in japan)
7. Screen mesh size is adjustable according to customers' requirement .
8. The shredders can be adjusted according to customer specific requirement
Machine parameter:

Model	VSP-2860	VSP-4080	VSP-40100	VSP-40120
Shredder Motor power : kw	22	37	45	55
Shredder Rotor speed: rpm	83	83	83	83
Shredder Rotor diameter:mm	280	400	400	400
Shredder Rotor Blade quantity:QTY	26	38	46	58
Shredder Fixed blade quantity:QTY	1	2	2	2
Shredder Screen diameter:mm	60	60	60	60
Crusher Motor Power:kw	15KW	22KW	30KW	30KW
Crusher Rotor Blades:QTY	18	24	30	30
Crusher Fixed Blades:QTY	2	4	4	4
Crusher Screen Diameter:mm	12mm	12mm	12mm	12mm
Capacity:kg/h	300	500	800	1000
Weight:kg	2350	3500	4300	4800

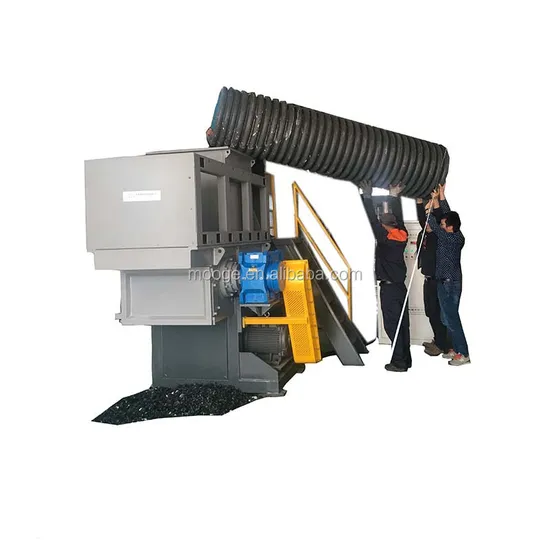

Machine photos:


Packaging & Shipping
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
Our Services
1.Pre-sale: we given client the details technician offer, sign the sales contract etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
FAQ
1.How to Choose proper Products you want?
Please tell us as detail as what you want
What's your raw material it is
What's the final products you want to produce
What capacity you want it performance
2.How to Control the quality?
We have technical, engineer team design the sample machinery before enter into market
Production QC team ensure the machine manufacturing quality
We will running every machine after finished before shipment

---
