Product Description
Product Description

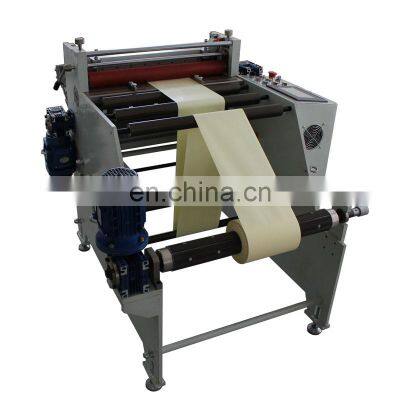

Products DescriptionTechnical parameters:Item NumberDP-360CQDP-500CQDP-600CQWeb Width0-360mm0-500mm0-600mmCutting length0-9999.99mm0-9999.99mm0-9999.99mmCutting speed0-130 cut/min0-130 cut/min0-130 cut/minCutting precision±0.05mm±0.05mm±0.05mmVoltage220V/380V220V/380V220V/380VSize1280*920*1300mm1280*1150*1070mm1500*1300*1200mmWeight240kg270kg320kgTotal Power1.5kw1.5kw1.5kw*the voltage can customize according to your country standards.Features:Taiwan brand servo motor & Japan brand mitsubishi PLC;Touch screen control panel,easy to operate;Can preset and adjust the cutting length ,total cutting quantity and speed;Afer the machine shutting down,it still can remember the amount automatically;Cutting tolerance can be reach ±0.1mm based on material;Optional function:Kiss cut (half-cut)Hot cuttingStatic electricity eliminatorCutting with position sensorApplication:Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.Optional DevicesKiss cutting Material:Utility knife and fixtureThis unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.Photo sensorIf added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.ANTISTATIC SYSTEMBEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM ANTI-STATIC SYSTEM MOTORMylar Paper Film Roll to Sheet Cutter Functional Characteristics:This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,which will be easy to load and unload. Purpose:It is applicable for the cutting of Paper,aluminum foil,copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette,metal foil, PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting electronicmaterials. After Sales Service Free sample testing and video for your reference Prompt delivery whthin 24 hours One year warranty ,whole life technical support Free training in our factory available before delivering machinesEngineers available to service machinery overseas Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.BUYING GUIDEIf you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .MaterialPictures are appreciated if possible Diameter ID & OD Thickness mm Weight KGLength you want to cut mmWidth mm
>>
