Product Description
Product Description

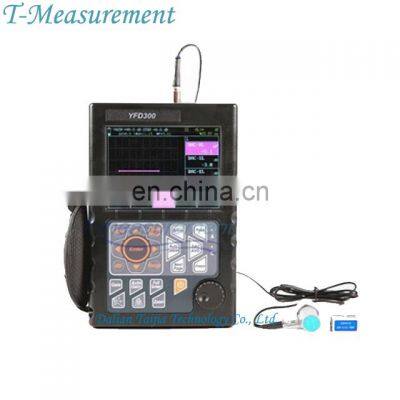

ndt Digital Ultrasonic flaw detector testing equipment for weld inspectionultrasonic flaw detectorFeatures1.Automated calibration of transducer Zero Offset and/or Velocity ;2.Automated gain,Peak Hold and Peak Memory;3.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Diameter);4.Automated switch three staff gauge ((Depth d,level p,distance s);5.500 independence setup, any criterion can be input freely, we can work in the scene without test block;6.Big memory of 1000 A graph.7.Gate and DAC alarm;Acoustic-Optical alarm;8.RS232/USB port,communication with pc is easy;9.The embeded software can be online updated;10.Li battery, continue working time up to 10 hours;11.Display freeze;12.Automated echo degree;13.Angles and K-value; 14.Lock and unlock function of system parameters;15.AWS D1.1;16.Dormancy and screen savers; 17.Electronic clock calendar ; 18.Automated make video of test process and play; Connect the Upan,the length of video is unlimited19.Two gates setting and alarm indication;20.High-speed capture and very low noise;21.DAC,AVG,TCG,B Scan ; Solid metal housing (IP65);22.Automated calculate the size of the flaw with w ide bottom type in AVG function.23.6dB DAC functions;24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;25.Powerful pc software and reports can be export to excel;ultrasonic flaw detectorTechnical DataRange of scanning (mm)0~10000D-delay (us)-20~+3400P-delay0.0~99.99MTLVEL(m/s)1000~15000Sensitivity Leavings>=62 dBDynamic range>=34dBFrequency Range (MHz)0.5~20BatteryLi battery 7.4V,4800mAhPower adaptorInput 100V~240V/50Hz~60Hz Output 9VDC/1.5AWorking temperature-20C~50CWorking humidity20%~90%Port typeBNC or LEMO 001Working modeSingle probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)ultrasonic flaw detectorultrasonic flaw detectorList of standard Accessories DesignationQuantityMain unit11.5A/9V power adaptor1probe connecting cable2Carrying case1Instruction manual1Straight probe3/4” 2.5MHz (One)Angle probe8×9 60°4MHz (One)ultrasonic flaw detectorOptional AccessoriesDesignationQuantitySerial cable1 (9 pin)Communication software for PC1 setultrasonic flaw detector Related Products:ultrasonic flaw detectorContatct Information:—— 24 Hours Online ——DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaMail:office at TEL:86-411-39685079Whatsapp:+8615541112235Web:ultrasonic flaw detector
>>
