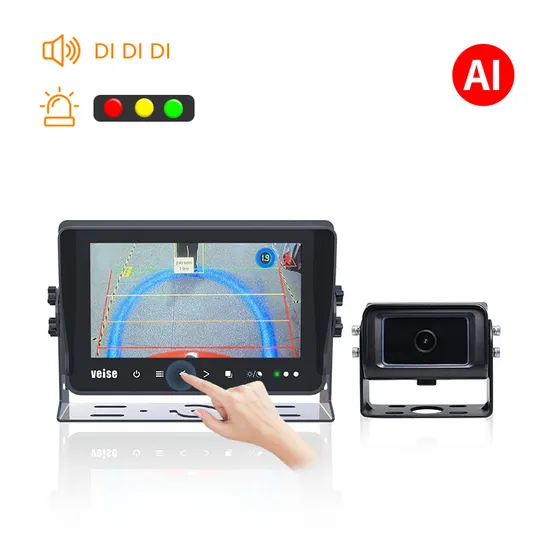

Ai Pedestrian Detection Backup Camera System with Ai Backup Camera and Audible & Visual Alarm

Product Description

AI Pedestrian Detection System Backup Camera System With Audible And Visual Alarm Summarize : Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. This is especially true in situations where no reverse radar warning system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses. The AI pedestrian detection warning rearview system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the AI human shape analysis camera to capture personnel in the monitoring area in real time, unlike ordinary cameras. It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. This system is widely used in trucks, forklifts, buses, and construction vehicles. Product Features 7-Inch HD Touch Button Monitor
Screen : 7-inch IPS screen with fast response speed, wide viewing angles, true colors, resolution of 1024RGBx600.
AI Warning : AI Camera sends warning signals that trigger monitor built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts.
Full Bonding Process for Screen: the protective glass panel and Screen of the monitor adopt a space free fully bonded process structure,Eliminate specular reflection to ensure clear and transparent image Screen.
Video Input: Supports 2 channels of video input.
Touch Button: Convenient and quick operation of image menu; OSD menu allows for settings such as screen mirroring, normal Screen, delay time, and dual trigger priority application.
Appearance Design: Patented independent design, housing made of ABS+PC materials, high-temperature resistant.
Sunshade Design: Removable sunshade to prevent sunlight from affecting Screen quality.
Bracket Design: Rust-proof metal material with a U-shaped and double-sided fastening anti-vibration design.
Brightness: 600cd high brightness for clear images.
Voltage Protection: Design protects against car transient pulses with a load-dumping pulse voltage of DC24V + 174V (350ms).
Power Design: Independent power-saving low-power design, with a wide operating voltage range of DC11~32V.
Protection Mechanisms: Built-in reverse polarity protection for external power supply and LED thermal response constant current and voltage protection.
Product Parameters

System Model	HDS-7171J122MAI1	HDS-7174MDJ122MAI1
HD Monitor	MHD-7171J	MHD-7174MDJ
Color Screen	7-Inch IPS Screen
Resolution	1024RGB(H) X 600(V) Dot
Video Input	2-Channels	4-Channels
Screen Mode	Single Screen
Video Signal Input	CVBS / AHD 720P / 1080P
AI Pre-Warning Signal Input	Green Light - Safe, Yellow Light - Caution, Red Light - Danger
OSD Menu Functions	Mirror/Normal Image Setting, Reverse Delay Setting, Trigger Priority, Multilingual Support
Color System	PAL/NTSC (AUTO)
Video Recording Format	/	AVI
Video Recording Capacity	/	Supports 16-512GB TF Cards (Standard 64G)
Video Recording Function	/	Real-Time Recording
Brightness	600 (Cd)
Contrast Ratio	800:1
Surge And Load Dump Protection	ISO16750-2 Standard (24V System Us=174V, Ri=4Ω, Td=350ms)
Operating Temperature	-20ºC To +70ºC
Storage Temperature	-30ºC To +80ºC
Operating Voltage	DC11-32V
Vibration Level	GB/T 2423.56-2018 Standard (Random 5G Vibration)
Dimensions (L X W X T)	210 X 143 X 84mm
Weight	800g

HD AI Pedestrian Detection Camera
HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!
Effective Pixels: 1920(H) x 1080(V)
Waterproof Rating: IP69K

AI Camera (CHD-122MAI)
Image Sensor	1/2.9 Color CMOS
Effective Pixels	1920(H) X 1080(V)
Horizontal Resolution	1080P
Field Of View	100°
AI Alarm I/O Output	1-4 Levels PWM
Detection Targets	Pedestrians/Non-Motorized Vehicles
Detection Image Ranging	0-5 Meters (Customizable)
Signal-To-Noise Ratio	≥48dB (AGC Off)
Video Output	AHD 1080P
Housing Material	Aluminum Alloy
Waterproof Rating	IP69K
Operating Voltage	DC 12V ±10%
Operating Temperature	-20°C To +60°C (RH95% Max)
Storage Temperature	-30°C To +70°C (RH95% Max)
Vibration Resistance	GB/T 2423.56-2018 Standard (Random 5G Vibration)
Body Interface	4-Core Aviation Connector
Product Dimensions	74(W) X 64(H) X 56(D) Mm

Video Power Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Applications
