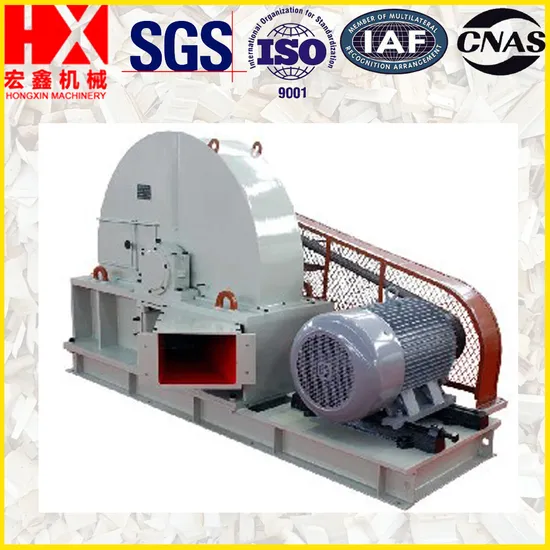

Wood Chip Factory Disc Wood Chip Machine for Sale

Product Description

Product Description
Log debarker and disc chipper assembly line is widely used in paper mill to produce uniform wood chips for making paper pulp from wood logs, branches and wood cutting residues. The debarking rate is up to 95% and the output chips is uniform and elegant.
Disc wood chipper is featured by the following characteristics.
1) Reasonable structure,
2) Wide usage, High throughput,
3) Qualified chips, Safe and reliable
4) Easy operation, Easy maintenance Prodcut Drawing
Detailed Photos
Product Parameters

Model	HX1710	HX1212	HX1300	HX1216	HX1800
Disc rotor diameter (mm)	1150	1300	1300	1600	1800
Blade quantity (piece)	6	6	6	6	6
Input size (mm)	270x270	320x320	350x350	420x420	500x500
Rotor rotation speed (rpm)	635	635	650	620	420
Chip size (mm)	20-35	20-35	20-35	20-35	20-35
Production capacity (tph)	5--8	10-12	12-15	15-25	20-40
Main motor power (kw)	75	90	110	160	160
Feed conveyor length (m)	4	4	4	6	6
Discharge conveyor length (m)	10	10	10	10	10
Weight (t)	2.18	2.9	4.25	5.58	6.5

Packaging & Shipping
Job Site
Company Profile
Shandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
Certifications
Shandong Hongxin Machinery Co., Ltd have obtained ISO 9001, CE certificates and many patents.

---
