Drive Motor Trainer New Energy Automotive Educational Training Equipment Electric Car Training Equipment

Product Description

Drive motor trainer new energy automotive educational training equipment electric car training equipment
PN: GTAT-D0005

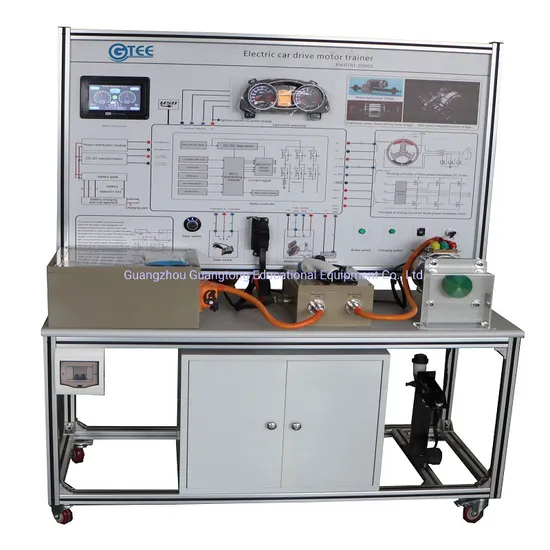

Picture for reference:
Technical parameter:
Dimension: 1380x600x1800mm (LxWXH)
Power supply: single-phase, AC220V/50Hz;
Product description
This training board displays the structure and principle of the electric vehicle battery pack and drive motor system, which can demonstrate the working process of the electric vehicle drive motor and conduct multiple drive motor control measurement experiments.
Product composition
1. Battery pack: 16pcs lithium iron phosphate 3.2V/20AH batteries;
2. Intelligent charging device;
3. Motor drive controller;
4. Accelerator pedal;
5. Brake pedal;
6. Shift switch;
7. Dashboard;
8. Fault setting module;
9. Power cord;
11. Drive motor: three-phase AC asynchronous motor, three-phase AC48V/5kw, rated speed 3000rpm.
12. BMS information display;
13. Maintenance switch;
14. Leakage protection switch;
15. Cabinet
Training Course
Training course 1: Brief introduction of main components
Training course 2: Functional demonstration
Training course 3: Drive motor and battery pack testing experiment
Experiment 1. Motor internal resistance and insulation testing;
Experiment 2. Motor running test;
Experiment 3. Battery voltage measurement;
Experiment 4. Battery charging experiment;
Experiment 5. Battery discharge experiment;
Experiment 6. Shift switch detection experiment;
Experiment 7. Motor drive controller adjustment experiment;
Experiment 8. Motor position sensor test experiment;
Experiment 9. Vehicle speed signal test experiment;
Experiment 10. Accelerator pedal measurement experiment;
Packing&Shipping
Solid plywood box and normally ship by sea, but if the size is not big, also by air, FedEx or DHL, TNT and so on.
Company Profile
Guangzhou Guangtong Educational Equipment Co.,LTD is a well-known high-tech company, we participate in many international educational tenders and help our customer win the tender.
We are specialized in development and manufacturing of professional Educational Equipment including automotive teaching equipment, air conditioning and refrigeration teaching equipment, electrical and electronic teaching equipment, lift teaching, solar energy trainer, electric car training device and other vocational training equipment etc.
GTEE is located in Baiyun District, Guangzhou City and adjacent to Guangzhou Baiyun International Airport.
With our several years of design, development, manufacturing and international service experience and expertise, GTEE is growing up and developing very fast. We continuously focus on providing high quality products with competitive price and reliable after sale services for our overseas customers. We will response to our customers within 24 hours after get the feedback and requirements.
Show room:
Customer Photos:
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Depends on product quantity and stock. Please check with our sales team.
Q: What are your terms of payment?
A: Payment<=5000USD, 100% in advance.
Payment>=5000USD, 50% T/T in advance, 50% T/T balance before shipment.
Q: Do you offer aftersales support ?
A: Yes, of course, we will provide training materials together with the device, and also we can provide on-site training and installation if customer request. We also have technical engineer for online or remote support, and if within warranty, products parts damaged due to our quality problems, we will send parts via DHL to you for replacement for free as we seek long term cooperation with customers.
Q: How to have exclusive sales rights of GTEE?
A: Place order to GTEE, when the order amount reach certain level, GTEE and customer will negotiate about exclusive rights.
Or send your company profile to GTEE, after GTEE evaluation, start from general agents and gradually become exclusive agent.

---
