Brand New Advanced Technology Agricultural Harvesting Machine Combined Tip Shovel Potato Harvester

Product Description

Product Parameters

No.	Item	Unit	Parameter Index
1	Structural style	/	Suspensiion type
2	Overall dimension (length×width×height)	mm	3880*2215*1215
3	Machine weight	kg	1588
4	Tractor engine power	kW	88.2-118
5	Working ridges	/	2
6	Working width	mm	1800
7	Adapt to ridge width	mm	≤900
8	Digging depth	mm	150~300
10	digging shovel type	/	Combined tip shovel
11	Potato-exposing rate	/	≥96%
12	Injury rate of potato	/	≤1.5%
13	Breakage rate	/	≤2%
14	Conveying device type	/	Conveyor chain grate sieve

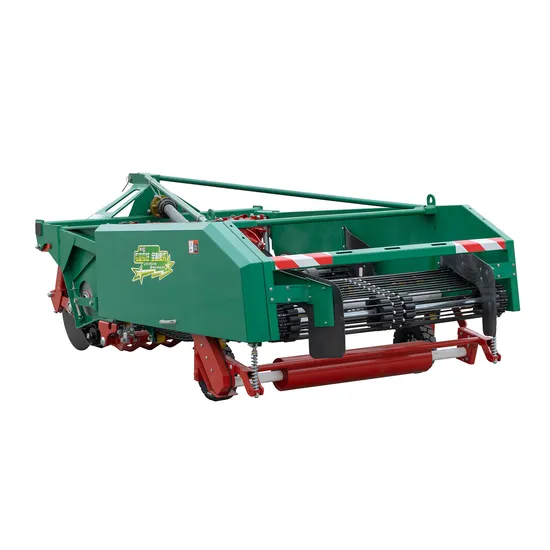

The 4UX-180B Potato harvester is an essential equipment for harvesting commercial and seed potatoes in large farms and large planting areas. It can complete the excavation, conveying separation and collection strip laying operations at one time. It has the characteristics of high harvest efficiency, no hurt potato, low breaking rate, high rate of bright potato, long service life and so on.
Detailed Photos
Certifications
Our Advantages
The potato combine harvester can realize the one-time excavation of potatoes, the separation of potato-soil, the separation of potato- salt, centralized collection and transportation, etc., and can harvest two ridges at a time, the working efficiency is above 0.33 hm2/h, and the loss is small and the skin breaking rate is low. Low, the potato is light and contains fewer impurities. The structure mainly consists of a frame, a depth limited wheel, a potato soil separation device, a clearing and soil removing device, a non-equidistant potato collecting device, a conveying device and a hydraulic system.

---
