Chicken Cage Breeding Equipment for Broiler in Algeria Farm

Product Description

Products Introduction

Our company is one of the earliest cage manufacters in China. According to customer's requirements, we improve broiler cage ,increase the height to suit the big broiler, decrease the width of cage to get better ventilation.
After many years of experience it has proved that our cage has good effect. From the first cage, our company has developed more than 10 type broiler cages, completely meet the various needs of all farmers.
Our cages are fully processed by CNC machine,we can also design the individual cage as per the special requirement of customers to produce the customized products.

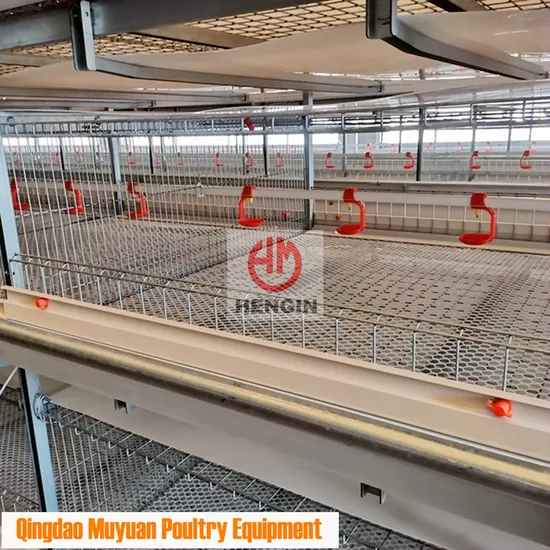

The size of 4 tiers H frame broiler cage (we also can produce 3 tier)

products name	4 tier H type chicken broiler cage	Model	9LRC-4272
Material	galvanized wire	Tiers	4 Tiers
one unit size	1200mm×1723mm×2655mm (L×W×H)	unit capacity	136 birds
one cell size	1200mm×700mm×460mm (L×W×H)	cell capacity	17 birds per cell
life span	20 years	living space/bird	494 cm²

2. Advantage:
1).The frame of cage is formed with the hot galvanized plate by using CNC machine, Accurate assembling can improve the stability of the cage structure, also avoid manure belt off running.
C shape leg is formed of hot galvanized sheet ,it is firm and easy to clean.The distance between adjacent legs is 1206mm,so that it make frame firm and strong.
2).The feeding trough is used of hot galvanized material , it is more strong than PVC material , Bottom of trough is changed to V-shape, more suitable for bird's eating habits; the feed is distributed more uniformly, that effectively prevent the moldy feed and ensure the broilers to eat fresh feed,also greatly reduce waste of feed.
3).Push-in door and pus-down bird-block board make easy to harvest birds.
4).Stainless steel frame of scraper make scraper to touch belt tightly and make belt clean;
Easy to remove the PVC scraper to clean easily.
One scraper is installed at the end of manure belt, and two secondary scrapers are installed below returning belt, so that manure can be cleared thoroughly.
5).
6).The feeding trough is used of hot galvanized material , it is more strong than PVC material ,the unique cart can be used on my trough.
3. Fully Cage System includes:

1). cage and frame
2).fully automatic drinking system
3).fully automatic feeding system
4).fully automatic manure removing system
5).fully automatic lighting system
6).fully automatic environment and electric controller system
Our Workshop
Our factory was founded in 2002 and has more than 800 employees,covers the 100,000 square meters,is a professional manufacturer of poultry farming equipments including "H"frame layer cage system,broiler cage system,broiler duck cage system, ,egg-duck cage system ,layer pullet cage system,layer breeder parents cage system,feed silo,bulk feed transporting tank and feed machinery etc.
FAQ
Q1:How many types for broiler chicken cage?
A1: We have two types of H frame broiler cage . The main different is on feeding system and birds harvset system .
1). fully automatic with feeding pan system and automatic birds harvest system, we usual do 3 tiers and 4 tiers .
2) fully automatic with feeding trough system and manual birds harvest system , we usual do 3 tiers and 4 tiers .
Q2:How much per set cage?
A2:Different model,price is different.In addition,there are other complement equipments.
Need know how many birds you want to rear,then we can give you a specific price list
with house size.

Q3:How long is the warrenty?
A3:1 year.

Q4:Who is in charge of install ?
A4:We will arrange two engineers to your country to guide installation
and provide training of full cage system.

---
