High Efficiency 37m Concrete Pump Truck Sy5230thbf 370c-10 on Sale

Product Description

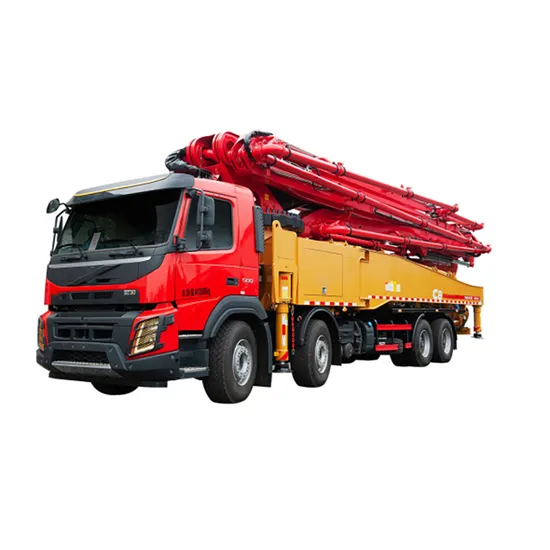

High Efficiency 37m Concrete Pump Truck SY5230THBF 370C-10 on Sale

The SY5230THBF 370C-10 A features a compact and ergonomic design, with dimensions of 10280mm in length, 2530mm in width, and 3850mm in height. This makes it easy to maneuver and operate, even in tight spaces. The pump truck also boasts a gross weight of 23,000 kilograms, ensuring stability and durability during operation.

In terms of certifications, the SY5230THBF 370C-10A is compliant with CE and ISO9001 standards, guaranteeing its quality and safety. It is sold as a single item and comes with a packaging size of 10280cm x 2530cm.
With a vertical maximum reach of 36.5 meters and a horizontal extension capability of 31.8 meters, the SY5230THBF 370C-10A offers impressive outreach, making it ideal for a wide range of applications, including high-rise building construction, bridge projects, and other large-scale infrastructure developments.
Product Parameters

Model		Unit		SY5230THBF 370C-10
Overall Specification	Length	mm		10280
	Width	mm		2530
	Height	mm		3850
	Dead Weight	kg		23000
Boom & Outrigger Specification	Vertical Reach	m		36.5
	Horizontal Reach	m		31.8
	Reach Depth	m		24.8
	Min. Unfolded Reach	m		7.5
	1st Section	Length	mm	7550
		Articulation	°	89°
	2nd Section	Length	mm	6025
		Articulation	°	180°
	3rd Section	Length	mm	5835
		Articulation	°	180°
	4th Section	Length	mm	6660
		Articulation	°	230°
	5th Section	Length	mm	6355
		Articulation	°	180°
	Rotation	°		±360°
	Front Outrigger Spread L-R	mm		6110
	Rear Outrigger Spread L-R	mm		8500
Pumping System Specification	Output	Low-Pressure	m³/h	120
		High-Pressure	m³/h	70
	Pressure	Low-Pressure	MPa	8
		High-Pressure	MPa	13
	Delivery Cylinder Diameter	mm		230
	Stroke Length	mm		1600
	Hydraulic System			Open
	Hydraulic System Oil Pressure	MPa		32
	Oil Tank Capacity	L		320
	Water Tank Capacity	L		700
	Pipe Diameter	mm		125
	End Hose Length	m		3
	End Hose Diameter	mm		125
Chassis Specification	Chassis Brand			top brand
	Chassis Model			SYM5230THB1F
	Engine Type			D09C6-320E0
	Engine Maximum Net Power	kW/rpm		229/1900
	Emission Standard			China stage VI
	Fuel Tank Capacity	L		300
	Displacement	L		8.7
	Max. Speed	km/h		90
