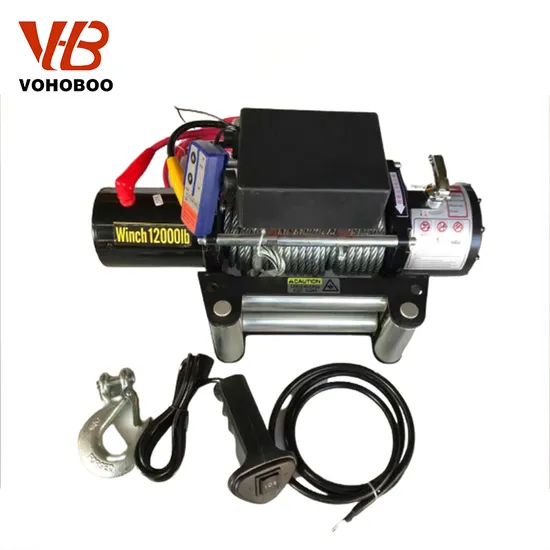

High Precision 12V/24V Car Electric Winch with High Strength Wire Rope

Product Description

Product Description Specifications:
DC 12V Car Winch, mini 12v or 24v electric winch:
1. Capacity: 2000-15000lbs
2. Sling type: wire rope
3. Voltage: DC 12v or 24v
DC 12V Car Winch, mini 12v electric winch Introduction:
DC 12V/24V Car Winch is the most common winch, driven by vehicle's own power system. It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose. It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.

Product Features:
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
Winch traction is valued by pound which can be converted to ton or kilogram. Do not exceed the rated traction.
The more cycles of winch wire rope on the reel, the less pull the outer cycle to bear.
The best advantage is that it can be normally used in condition of vehicle switch off while others can not.
Easy and multi-position installed, fast movable.
High density & high strength wire rope, durable and firm.

Product features:1.12/24V volt series wound motor for power and fast line speed2. Low-profile design will fit suv, offroad, jeep and so on3.Durable, smooth, and reliable three-stage planetary gear train4. Automatic load-holding break for safety5. The clutch allows you to release winch rope by hand6. Aircraft grade wire rope, or synthetic rope is optional7. Remote switch + wireless remote control8. We have 100% testing on winch pulling capacity and function9. Our products are of well-designed, beautiful appearance and easy to install
Product Details
Product Advantages
Product Parameters

Model	Lashing Capacity	Rope length	Rope diameter	Voltage	Ratio	Drum size	Weight
2000lb	2000lb	6m	4mm	DC 12v or 24v	153:1	1.25"	6.5kg
3000lb	3000lb	6m	5mm	DC 12v or 24v	153:1	1.25"	7kg
3500lb	3500lb	10m	5.4mm	DC 12v or 24v	153:1	1.45"	9kg
4000lb	4000lb	10m	6mm	DC 12v or 24v	136:1	1.45"	10kg
4500lb	4500lb	10m	6mm	DC 12v or 24v	136:1	1.45"	12kg
6000lb	6000lb	20m	6.4mm	DC 12v or 24v	164:1	2.52"	28kg
9500lb	9500lb	24m	8.3mm	DC 12v or 24v	265:1	2.52"	37kg
12000b	12000b	24m	9mm	DC 12v or 24v	265:1	2.52"	38kg
16800lb	16800lb	24m	10.5mm	DC 12v or 24v	358:1	2.52"	56kg

Product Application
Packaging & Shipping
About Us

---
