Vertical Drilling Milling Machine XQ6332 / XQ6332A / XQ6332B/ XQ6332C

Product Description

Product Description

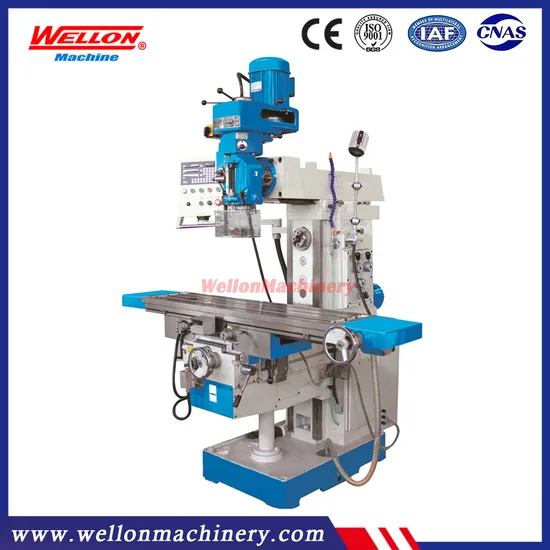

Vertical Milling Machine XQ6332 / XQ6332A / XQ6332B/ XQ6332C

Detailed Photos
Product Parameters

Performence Features: 1. Universal milling machine featuring a moveable arm and big clamping area. 2. Big dimensioned guidings in all axis guarantees absolute precision and stability. 3. Rapid feed and 8 feeds in all axis, driven by servomotor. 4. Mill table tilts from -45° to +45°, 5. Tiltable spindle head from -90° to +90° allows for various operations. 6. The machine is serially equipped with an automatic spindle feed.
Technical parameter:

Specifications	Unit	XQ6332	XQ6332A	XQ6332B	XQ6332C
Table size	mm	1270X320	1370X320	1270*320	1370*320
Table travel (X/Y/Z)	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Spindle taper	---	3HP: R8 or ISO30; 5HP: ISO40
Table feed (X/Y/Z)	mm/min	Variable
Distance between horizontal spindle and table	mm	75-475
Distance between spindle and ram	mm	200
Spindle speed range	r/min	65-4660 (16 steps)
		35-1500 (12steps )
T-slots(No./width/pitch)	mm	3/14/80
Arm travel	mm	450
Main motor power	---	3HP or 5HP
		3Kw
Torque of X/Y/Z axis servo motor	N.m	10
Overall size	cm	172×168×235	182×168×235	172×168×235	182×168×235
Net weight	kg	1680	1730	1730	1780

Rotary table can be ordered at special request:

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance from spindle to table
XQ6332W	1270*320	720/300/400	±45°	35-435
XQ6332AW	1370*320	820/300/400
XQ6332BW	1270*320	900/380/400
XQ6332CW	1370*320	1000/380/400

Standard accessories:
Drill chuck
Reduction sleeve
Collets chuck sets
Draw bar
Mill arbors
Work lamp
Coolant system
Oil tray
CE electric
Some tools
Optional accessories:
Machine Vice
Three Axis DRO
Spindle protection
58 pcs clamping kits
Dividing head
Rotary table
Variable spindle speed
Table swivel table
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
