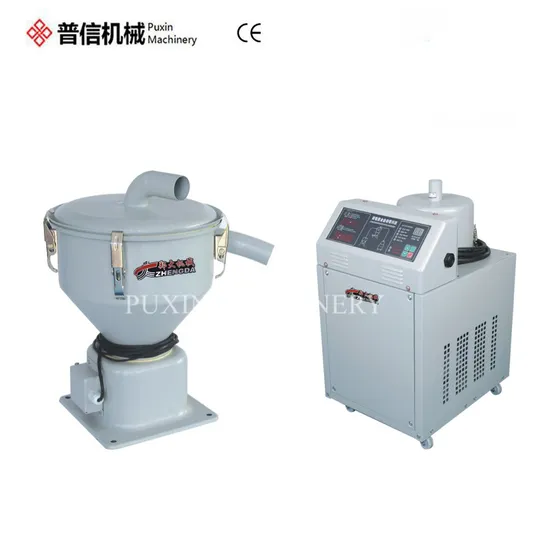

Automatic Plastic Material Hopper Loader for Blow Molding/Injection Molding

Product Description

Automatic Plastic Material Hopper Loader for blow molding/injection molding
Features
1.Material hopper separates with main controller,safety and more convenient.
2.With isolated filter,it is easy to clean.
3.It is equipped with the speceal device to redue the working niose.
4.Material hopper is made of aluminium,light and durable.
5.Separately design control box is operated by microcomputer.
6.It is equipped with motor auto protection device.
7.Warning device works automatically when lacking material.
8.Motor can rotate anti-closewise to get rid of dust.

Model	Motor		Converying Capacity	Material Hopper Volume	converying Tube Calibre	Exterial Dimensions		Weight(kg)
	Type	Specification				Main Controller	Material Hopper	Main Controller	Material Hopper
ZDVAL-300G	Carbon brush	1000W1Φ	400KG/H	6L	Φ38mm	400x350x600	/	12	/
ZDVAL-1HP	Induction	1HP3Φ	300KG/H	6L	Φ38mm	450x400x900	400x280x440	38	6
ZDVAL-2HP	Induction	2HP3Φ	4500KG/H	12L	Φ38mm	450x400x950	400x380x500	40	12
ZDVAL-3HP	Induction	3HP3Φ	550KG/H	12L	Φ38mm	500x450x1050	400x380x500	42	12
ZDVAL-5HP	Induction	5HP3Φ	650KG/H	24L	Φ51mm	600x550x1150	520x500x800	48	24
ZDVAL-7.5HP	Induction	7.5HP3Φ	800KG/H	36L	Φ51mm	800x700x1250	800x670x1000	60	36

---
