Vertical Horizontal Milling Equipment Bevel Milling Machine for Conventional Metal Cutting Tools

Product Description

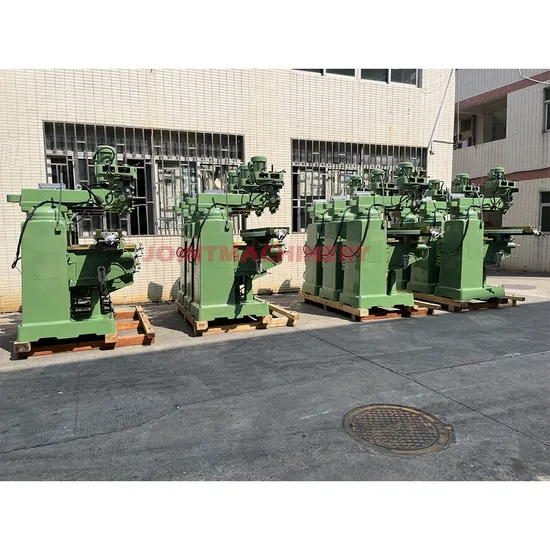

Recombination Precision Vertical Horizontal Milling Machine
√ Application: Perfectly suited for sewing machines, hardware tools, shoe molds, clocks, and more, this machine excels in versatile applications.
√ Suitable for semi-rough and precision processing: Whether you need robust or detailed work, it's your go-to solution for both.
√ Equipped with high-precision milling heads: Experience a wide speed range and unparalleled precision with our expertly designed milling heads.
√ Optional trapezoidal screw or ball screw: Choose between electronic or mechanical power feed, or embrace the advanced servo motor for exacting performance.
√ Seamlessly achieve vertical or cross milling: Adapt swiftly to your specific processing requirements with ease.
√ ±45°, bevel milling: Achieve intricate bevel milling tasks with precision and adaptability.
1. WORKTABLE
Our worktable epitomizes superior craftsmanship-enhanced by ultra-audio quenching, precision grinding, and finely scraped guides-guaranteeing unparalleled smoothness. Expand its potential with an additional rotary table for versatile functions.
2. TURRET MILLING HEAD
Our sophisticated turret milling head is engineered for 45° forward-backward swivel and 90° left-right rotation, providing flexible milling solutions for complex angles and intricate projects effortlessly.
3. SPINDLE
Outfitted with a high-precision R8/NT30/NT40 spindle, our machine ensures minimal runout of just 0.003mm, guaranteeing extraordinary precision and accuracy in every operation.
4. X/Y/Z AUTO FEED
Transform your workflow with our automatic X/Y axis feed and electric Z-axis lift, dramatically enhancing efficiency and simplifying your operations.
5. DRO
Refine your precision with our customizable 2-axis or 3-axis DRO, meticulously crafted to meet your requirements and amplify your performance.
Vertical Horizontal Milling Equipment Bevel Milling Machine for Conventional Metal Cutting Tools

Model				6VH
Table size			mm	1370*330
Travel		X axis	mm	1000
		Y axis	mm	400
		Z axis	mm	420
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	600
Diameter of quill			mm	F100
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	132-4540/(16 grades)
		60HZ	rpm	160-5440/(16 grades)
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	Vertical:5HP/Horizontal:3HP
Dimension			mm	1990*1920*2015
Weight			kg	2600
Max load of work table			kg	500
