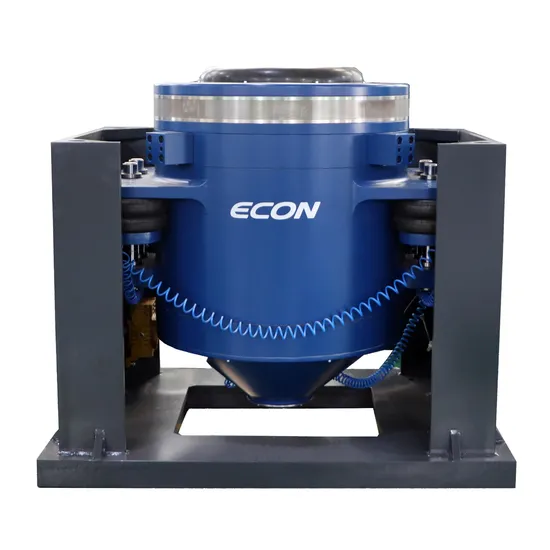

32kN Electro-Dynamic Vibration Testing Long Stroke Shaker (Air-Cooled Shaker)

Product Description

Product Description EDM-LS series electro-dynamic vibration test system is suitable for vibration test requirements with long stroke. The frequency range of this series is 1-2500Hz, Max. acceleration up to 800m/s² (no-load), and Max. speed up to 1.8m/s.
The system is mainly used in aerospace, transportation and other fields. It can meet the test requirements of random, sine and impact, and is suitable for the transportation environment test specifications stipulated by ISTA.
Features The unique guidance system and support system for EDM-LS series;
Max.Displacement: 100mm;
Various models from 30KN to 50KN;
Easy operation;
Armature Diameter range from 350mm to 445mm;
Max.Load: 800kg;
Product Parameters

System Model	EDM-3200LS	EDM-5000LS
Sine force Peak (kN)	30	50
Frequency range (Hz)	5~2500	5~2500
Max. Acceleration (m/s²)	750	750
Max. Velocity (m/s)	2	2
Max. Displacement pp(mm)	100	100
Max. Load (kg)	500	800
Effective armature mass (kg)	40	63
