Powder mixing and packing machine line

Product Description

Product Description
Dahepack provides a one-stop solution for the mixing, packaging machine system.
The system including the machine below
1.Screw feeder with dust cover2.Ribbon blender
3.Screw feeder
4.Powder filling machine
Whether your requirements are for a single machine or turnkey process, we have rich experience to your project.

Model	DH-JD-200	DH-JD-300	DH-JD-500	DH-JD-1000	DH-JD-1500	DH-JD-2000
Effective Volume	200L	300L	500L	1000L	1500L	2000L
Fully Volume	284L	404L	692L	1286L	1835L	2475L
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	250kg	350kg	500kg	700kg	1000kg	1300kg
Total Power	4kw	5.5kw	7.5kw	11kw	15kw	22kw
Length（TL）	1370	1550	1773	2394	2715	3080
Width（TW）	834	970	1100	1320	1397	1625
Height（TH）	1647	1655	1855	2187	2313	2453
Length（BL）	888	1044	1219	1500	1800	2000
Width（BW）	554	614	754	900	970	1068
Height（BH）	637	697	835	1050	1155	1274
Radius(R)	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz

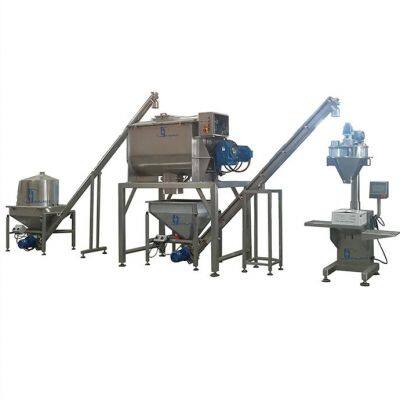

Below mixing and packing line including the machine
1.Stairs
2.Ribbon mixer
3.Screw feeder
4.Powder filling machine
Upgrade your production line with our advanced powder mixing equipment, designed to enhance the consistency, efficiency, and quality of your powder blending operations. Our mixers are tailored to meet the diverse needs of various industries, ensuring optimal performance and superior product quality.

---
