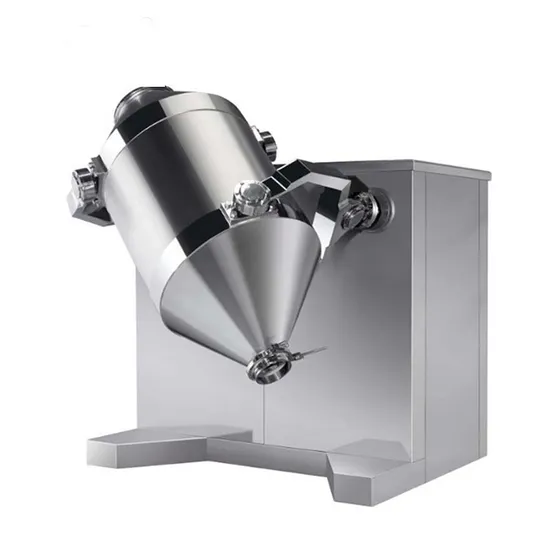

Swh-200 Multi-Direction Movement Mixer for Pharmaceuticals

Product Description

Swh-200 Multi-Direction Movement Mixer for Pharmaceuticals
Type:SWH-200
Mixing Volume(L):200
Max. Loading Volume(L):160
Max. Loading Weight(g):160
Speed(r/min):0-15
Motor power(KW):2.2
Size(mm):1400×1800×1600
Weight(kg):800
Application:
This new designed mixer is widely applied in pharmaceuticals foodstuffs, chemical, industrials and light industries to mix dry powder and granulator.
Principle:
This mixer provides high quality mixing by meanings of the multi direction movements of its barrel which fast the fluidity and diffuse of the materials avoid specific gravity accumulation, due to eccentricity.
Structure:
It is mainly composed of machine set drive, system, electrical control system, multidirectional, motions mechanism mixing tank, it is more efficient than ordinary mixers with a unique barrel body, made of stainless steel, inside and outside polished, with no death-corner.
Features:
1.Even mixing, higher barrel volume utilization than that the 40% of other mixers.
2.Special designed barrel with fine inside and outside polishing materials down load by self weight no sharp corner, no materials remained, easy to wash mixing within barred no environment pollution.
3.It doesn't produce for pollution of the environment, when mix the material into special.
Technical Parameter:

Type	SWH25	SWH-100	SWH-200	SWH-400	SWH-600	SWH-800	SWH-1000	SWH-1200	SWH-1500
Mixing Volume (L)	25	100	200	400	600	800	1000	1200	1500
Max. Loading Volume(L)	17	75	160	320	480	640	800	950	1200
Max. Loading Weight(g)	17	75	160	320	480	640	800	950	1200
Speed(r/min)	0-15	0-15	0-15	0-12	0-11	0-10	0-10	0-10	0-10
Motor power(KW)	0.55	1.5	2.2	4	5.5	7.5	7.5	11	15
Size(mm)	900*900 *75	1200*1600 *1500	1400*1800 *1600	1700*2100 *1850	2100*2400 *2250	2200*2500 *2300	2280*2600 *2500	2400*2800 *2550	2500×3100 ×2600
Weight(kg)	150	500	800	1200	1500	2000	2500	2800	3000

---
