Smart Weather Station Environmental Monitoring System for Solar Power Plant

Product Description

Product Description

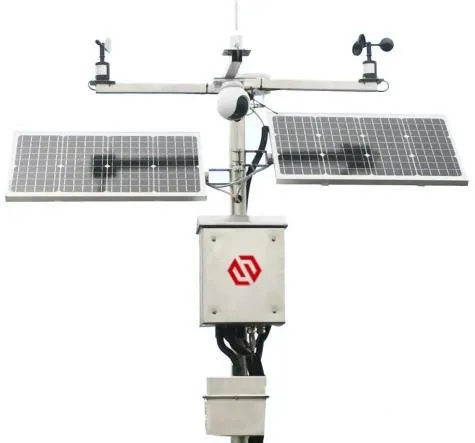

The system is independently designed by Shiyou Electric and can monitorthe temperature, humidity, wind speed, wind direction, solar radiation and other environmental parameter of the PV plant in real time. It is characterised by stable performance, high detection accuracy and unattendedoperation;ithasa grid failure protectionfunctionandcan automaticallyswitchto the power supply of the solar storage system in case of temporary grid failure. In addition, it also has 5G wireless data transmission and video monitoring functions. Detailed Photos
Product Parameters

Photovoltaic solar radiation sensor
Power supply range	7V~30V DC
Output method (optional)	485(Standard Modbus-RTU protocol)
	Current Output:4~20mA
	Voltage Output:0~5V,0~10V
Power consumption	0.06W
Operating temperature	-25ºC~60ºC
Measurement object	Sunlight
Measurement range	RS485:0~2000W/m² Analogue data:0~1800W/m²
Resolution	1W/m²
Response time	≤10s
Non-linearity	<±3%
Annual stability	≤±3%
Accuracy	±5%
Wave length range	400~1100nm

Meteorological louver box
Temperature range	-40ºC~80ºC
Humidity range	0%RH~100%RH
Temperature Accuracy (25ºC)	±0.5ºC
Humidity accuracy	±3%RH(60%,25ºC)
Power supply	DC 10~30V
Output signal	RS485(Modbus protocol)
Response time (1m/s wind speed)	<15s
Long term stability	temperature≤0.1ºC,humidity<1%RH

Polycarbonate wind speed transmitter
Wind speed accuracy	±(0.2+0.03V)m/s, V represents wind speed
Volume	Small
Measurement object	Wind speed
Line length	0.7m
Measuring range	Default 0~70m/s
Advantage	High-precision, anti-corrosion, waterproof, anti-electromagnetic interference and high-quality materials.

360 degree polycarbonate wind transmitter
DC power (default)	10~30V DC
Maximum power consumption (optional)	485 output:	≤0.2W
	Current output:	0.75W
	Voltage output:	0.75W
	4G output:	≤1.2W
Transmitter circuit operating temperature	40ºC~+60ºC,0%RH~80%RH
Measurement range	0~359.9°
Accuracy	±1°

Dynamic response time	≤0.8s
Output signal (optional)	RS485(Modbus) protocol
	4G mobile phone network from the mobile operation company such as China Mobile,China Unicom or China Telecom
	Current output:	4~20mA
	Voltage output:	0~5V/0~10V
Load capacity	Current output:	Output resistance≤250Ω
	Voltage output:	≤600Ω

---
