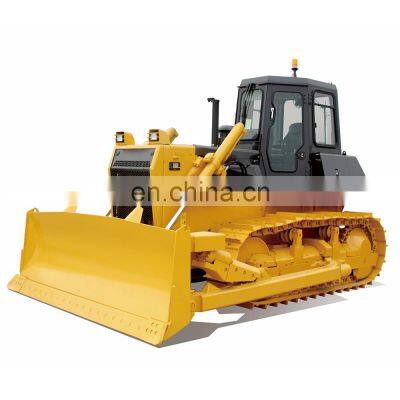

Bulldozer is an earth-moving engineering machine capable of excavating, transporting and discharging rock and soil, and has a wide range of uses in open pit mines. For example, it is used for construction of dumping grounds, leveling of automobile dumping grounds, stacking of scattered ore rocks, leveling work flats and construction sites, etc. It is not only used for auxiliary work, but also for main mining work.Factory price Shantui SD16 crawler bulldozer For example: stripping and mining of sand deposits, traction and boosting of scrapers and rock plows, in conjunction with other earth-moving machinery to reduce the height of stripping steps when there is no transportation mining method.
DH16 bulldozer is a new generation hydrostatic bulldozer. The two-circuit electronically controlled static pressure drive system can intelligently adapt to the load variation and realize steering and pivot steering under loaded condition, featuring high working flexibility and efficiency and low fuel consumption. The hydraulic pilot control for the working device features simple and sensitive operations. The sealed shock-absorbing cab features large space, high safety and comfort, and low noise. The modular structure features low malfunction rate and easy maintenances.
Parameter name
| SD16 (Standard version)
| SD16C (Coal version)
| SD16E (Extended version)
| SD16L （Super-wetland version）
| SD16R (Environmental sanitation version)
| SD16D (Desert version)
|
Operating weight (Kg)
| 17000
| 17500
| 17346
| 18400
| 18400
| 18200
|
Ground pressure (kPa)
| 58
| 50
| 55
| 25
| 25
| 33.2
|
Engine model
| WD10(China-II)/WP10(China-III)
| WD10(China-II)/WP10(China-III)
| WD10(China-II)/WP10(China-III)
| WD10(China-II)/WP10(China-III)
| WD10(China-II)/WP10(China-III)
| WD10(China-II)/WP10(China-III)
|
Rated power/rated speed (kW/rpm)
| 131/1850
| 131/1850
| 131/1850
| 131/1850
| 131/1850
| 131/1850
|
Overall dimensions of machine (mm)
| 5140*3388*3032
| 5427*3900*3032
| 5345*3388*3032
| 5262*4150*3074
| 5262*4150*3074
| 5262*4150*3074
|
Forward speed (km/h)
| F1:0-3.29,F2:0-5.82,F3:0-9.63
| F1:0-3.29,F2:0-5.82,F3:0-9.63
| F1:0-3.29,F2:0-5.82,F3:0-9.63
| F1:0-3.29,F2:0-5.82,F3:0-9.63
| F1:0-3.29,F2:0-5.82,F3:0-9.63
| F1:0-3.29,F2:0-5.82,F3:0-9.63
|
Reversing speed (km/h)
| R1:0-4.28,R2:0-7.59,R3:0-12.53
| R1:0-4.28,R2:0-7.59,R3:0-12.53
| R1:0-4.28,R2:0-7.59,R3:0-12.53
| R1:0-4.28,R2:0-7.59,R3:0-12.53
| R1:0-4.28,R2:0-7.59,R3:0-12.53
| R1:0-4.28,R2:0-7.59,R3:0-12.53
|
Center distance of track (mm)
| 1880
| 1880
| 1880
| 2300
| 2300
| 2300
|
Width of track shoes (mm)
| 510/560/610
| 610
| 560/510/610
| 1100/950
| 1100/660
| 810
|
Ground length（mm）
| 2430
| 2430
| 2635
| 2935
| 2935
| 2935
|
Fuel tank (L)
| 315
| 315
| 315
| 315
| 315
| 315
|
Blade type
| Angle Blade, Straight tilting blade and U-shaped Blade
| Coal blade
| Angle Blade, Straight tilting blade and U-shaped Blade
| Straight tilting blade
| Sanitation blade
| Straight tilting blade
|
Digging depth (mm)
| 540
| 540
| 540
| 485
| 485
| 485
|
Ripper type
| Three-tooth ripper
| ——
| Three-tooth ripper
| ——
| ——
| ——
|
Ripping depth (mm)
| 570
| ——
| 570
| ——
| ——
| ——
|
