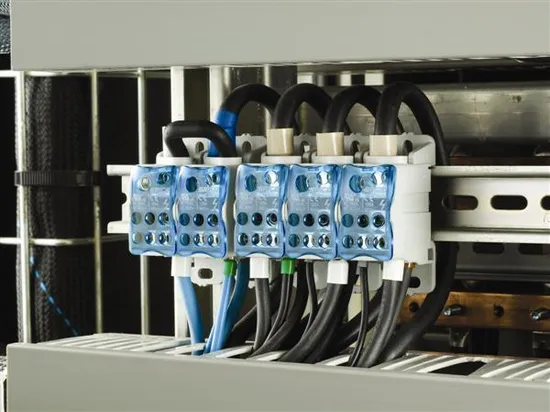

250A Single Power Modular Distribution Terminal Blocks

Product Description

General Introduction :Modular Distributino Blocks is a safe and convenienl way splitling primarypower circuits into a variety of branch circuits or providing a fixed junction tap-off point,ideally suiled for usewith control paneis,heating, air conditioning, refrigeraion. elevatorsystems, switchgear, and any area wherepower needs to be distributed to more than one lead. Our UDD (UKK) series blocks features as followings:
1. range from 80A to 500A
2. self-extinguish thermoplatsic housing ,94UL-V0
2. tinned copper modular for copper and aluminum cable
3. gangable configuration ,combine single block to sets of blocks
4. intergrated Din Rail mounting with clip or pole mounting with screws
5. hex socket set screws ,zinc plated
6. IP20 fingerproof ,touch safe
Specification:

Henswell Code	General Code	Rated Current	Wiring Range		N.m	Dimension
			in coming (mm)	out coming (mm)		LxWxH (mm)
UDD5080	UKK80	80A	1x6-16		3.5	65x29x46
				4x2.5-6	1.2
				2x2.5-16	3.5
UDD5125	UKK125	125A	1x10-35		8.5	70x29x46
			1x6-16		3.5
				6x2.5-6	3.5
UDD5160	UKK160	160A	1x10-70		8.5	70x29x46
			1x6-16		3.5
				1x2.5-16	3.5

Henswell Code	General Code	Rated Current	Wiring Range		N.m	Dimension
			in coming (mm)	out coming (mm)		LxWxH (mm)
UDD5250	UKK250	250A	1x35-120		19	96x48x50
				2x6-35	9
				5x2.5-16	6.8
				4x2.5-10	6.1
UDD5400	UKK400	400A	1x96-185		25	96x48x50
				2x6-16	4.4
				5x2.5-16	2.7
				4x2.5-10	2.7
UDD5500	UKK500	500A	3x15…8x24		10	96x48x50
				2x6-35	4.4
				5x2.5-16	2.7
				4x2.5-10	2.7

Remark :
1. payment term: generally 30% T/T in advance, balance paid against the B/L copy
2. lead time: from 2 weeks to 4 weeks generally
Service Points:
1. quick and professional response within 24 hours
2. detailed quotaion sheet including image,description,packing list in form of PDF, Excel or JPG.
3. samples provided free of charge generally
4. keep you informed of process of production and shipment by means of data and pictures
5. package image design by use of main software like coredraw, photoshop
6. carefully designed with 2D and 3D software before physical mould-making for new products
