Basic Info.
Image Sensor
1/2.8" 4K CMOS, 8.46MP
White Balance
Auto, Indoor, Outdoor, One Push,Manual, Auto Track
Interface
HDMI 3G-SDI IP USB
Transport Package
Neutral
Specification
CE, FCC, Rohs etc.
Origin
Shenzhen, Guangdong
Production Capacity
10000PCS/Month
Product Description

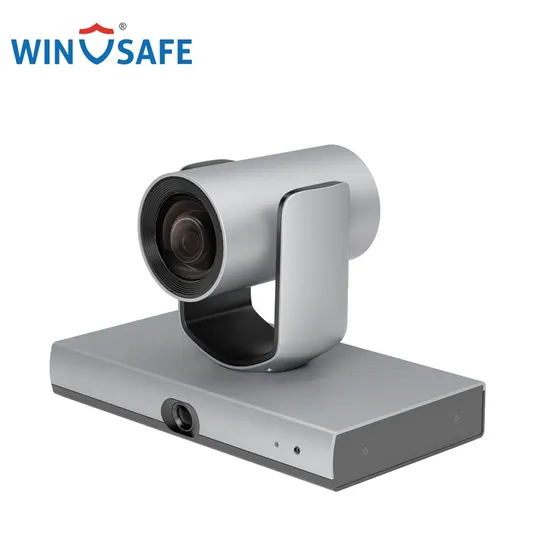

Broadcast Solution Video Tracking PTZ Camera System Support HDBase
- Dual-cam design, simultaneous 4K UHD outputs of tracking cam and full-view cam
- Tracking cam: 12x optical zoom, HFOV up to 81°, max resolution 4KP60
- Full-view cam: 4K lens, HFOV 94°, no distortion
- Built-in advanced AI algorithm based on deep learning, to ensure stable tracking and precise posture recognition
- Board writing recognition based on pose estimation, giving clear view of writing content
- Rich tracking modes such as auto framing, zone tracking, lock-n-track, group tracking etc.
- Simultaneous outputs over HDMI, USB2.0, Ethernet, 3G-SDI, support POE
- Built-in Web UI for easy setting and control
- Support 59.94/29.97 frame rate
| Image Sensor | 1/2.8" 4K CMOS, 8.46MP |
| Focal | f = 3.4mm - 40.3mm |
| Iris | F1.8 - F3.6(Tele) |
| Zoom | 12x optical zoom |
| HFOV | 81° - 7.6° |
| Focus | Auto, Manual, PTZ Trigger, One Push Trigger |
| AGC | Auto/Manual |
| White Balance | Auto/Indoor/Outdoor/One Push/Manual/Static |
| AE Control | Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
| Shutter Speed | 1/50 - 1/10,000s |
| Full View Camera |
| Image Sensor | 1/2.8" 4K CMOS, 8.46MP |
| White Balance | Auto |
| Exposure | Auto |
| Lens | f=2.8mm |
| HFOV | 94° |
| PTZ |
| Pan | -130° - +130°, 0.2° - 80°/s |
| Tilt | -30° - +90°, 0.2° - 60°/s |
| Preset Number | 256 |
| Interface |
| HDMI | 1 x HDMI with audio
Output switchable between full-view cam and tracking cam: Max. 4KP30
Output only from tracking cam: Max. 4KP60
Support broadcast resolution: Max. 4KP59.94/P29.97 |
| 3G-SDI | 1 x 3G-SDI with audio
Output swichable between full-view cam and tracking cam: Max. 1080P60
Output only from tracking cam: Max. 1080P60
Support broadcast resolution: Max. 1080P59.94/P29.97 |
| Network | 10/100M RJ45 self-adaptive with POE
H.264/H.265, support main and sub steam
Output switchable between full-view cam and tracking cam: Max.4KP60
Support NDI HX3/Dante/AV-H/ONVIF/RTSP/RTMP/SRT/TCP/UDP/RTMPS/VISCA OVER IP
Audio compression: AAC, G.711
Built-in Web UI |
| HDBaseT(Optional) | 1 x HDBaseT(Optional)
Output swichable between full-view cam and tracking cam: Max.4KP30
Output only from tracking cam: Max. 4KP60 |
| USB | USB2.0 Type-B with UAC, UVC1.1
Output switchable between full-view cam and tracking cam: Max. 4KP30
UVC supports H.264/MJPEG |
| Audio Interface | 1 x Line IN, 3.5mm |
| Control Interface | 1 x RS-232 IN, 1 x RS-232 OUT |
| DIP Switch | Rotary DIP switch to define video format |
>>
