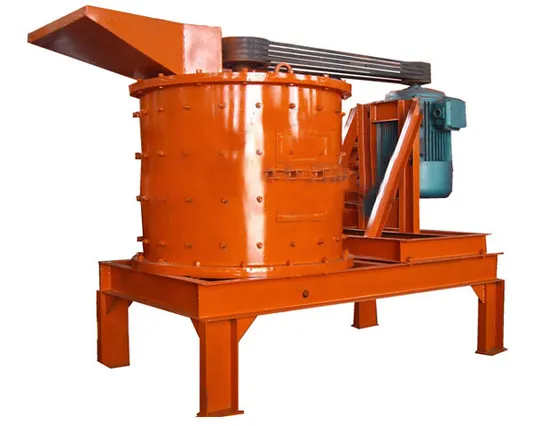

High Efficiency Stone Rock Concrete Mining Vertical Compound Limestone Crusher

Product Description

High Efficiency Stone Rock Concrete Minging Vertical Compound Limestone Crusher

I. Vertical Compound Crusher Usage and Application
The machine is fine crushing equipment that crushes materials in middle hardness, such as rocks and mines with pressure strength less than 210MPa and humidity less than 5%. E.g. limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum, cobble, rock phosphorite, copper ore, burned magnesite, serpentine, calces, gypsum, lump coal, zeolite, sandstone and so on. It is widely used in the industry of mining, metallurgy, building materials, fireproof materials, cement, coal, glass, chemical industry, electricity power and so on.
II. Vertical Compound Crusher Working Principle
The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works. The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the effect of Centrifugal Force.
Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead. After gaining sufficient energy, the materials are thrown to the impact board again and action repeats. The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and ground and action repeats. In this way, the materials go through up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the hammers and the impact boards, and finally the materials are gradually crushed into needed sizes and come out.
III. Vertical Compound Crusher Features The machine has special structure in the part of throw-up disc, which can improve the usage of abrasive material and reduce the cost. The wearing parts are made of anti-abrasion material (metal alloy in high hardness and toughness), so it can endure for long time. It has the advantage of high crushing ratio, large output, high efficiency, and low consumption. It is of easy operation, good performance, low noise, little vibration and good airproofing, so it is a high efficient and high level fine crushing equipment.
Technical Parameters

Model	Feeding size (mm)	Discharging size (mm)	Production capacity (t/h)	Rotational speed (r/min)	Motor power (kw)	Overall dimension (mm)
PEL-800	<100	<3-5 60%-90%	10-20	934	22	2100x1200x1700
PEL-1000	<120	<3-5 60%-90%	20-40	769	45	2600x1400x1900
PEL-1250	<150	<3-5 60%-90%	40-70	530	75	2800X1600X2100
PEL-1500	<180	<3-5 60%-90%	70-100	495	132	3100X1900X2200
PEL-1750	<200	<3-5 60%-90%	130-190	424	160	3710x2360x2390
PEL-2000	<220	<3-5 60%-90%	100-160	370	185	4100x2660x2620

More Products
Company Profile
Henan Yuhui Mining Machinery Co, Ltd. is located in Zhengzhou city in central plains, which adjoins to ancient millennium Shaolin Temple (Kung fu Origin) to the south, and Yellow River to the north. With Kailuo highway and Longhai railway, it owns convenient transportation and pleasant scenery.Established in the 1970s, Henan Yuhui Mining Machinery Co.,Ltd. has developed into a famous manufacturer through 20 years struggling and progressing, specialized in producing mineral dressing equipment, compound fertilizer equipment, cement equipment, as well as sand making equipment. YuHui provides a connected sequence service with designing process flow, on-site civil engineering guidance, installing and debugging the equipment, training technical and operating people for clients. The company guarantees repair, replacement and refund and is warrantable to the complete machine for one year. It supplies accessories for a long period. Welcome inquiries and purchase from both new and old customers as well as worldwide friends
Customers
Each year we have the customers from world wide to our company for visit, like America, Malaysia, Indonesia, Philiphine, Sudan, Namibia, Zimbabwe, Zambia, Ethiopia, india, peru and so on. Welcome to our company for visit.

---
