High Accurate Automatic Laser Welding Machine for Aluminum and Stainless High Speed Welder

Product Description

Product Description
The continuous optical fiber laser welding machine is consist of welding body, welding working table, water chiller and controller system etc. This series of equipment is 3-5 times of the speed than the traditional optical fiber transmission laser welding machine, It can precisely weld plane circumference, line type products and non-standard customized production lines. The fiber laser has the characteristics of high beam quality and high energy. In the continuous welding state, compared with the same power YAG laser, it has the characteristics of deep welding depth and good welding strength.
The equipment has no consumable parts long life, low failure rate and other characteristics.

Laser Power	500W	1000W	1500W	2000W	3000W
Laser Type	Continuous
Wavelength	1070nm
Laser Power	500W - 3000W ( Optional)
Power Range	1-100%
Power Range	5-20KHz(Adjustable)
Pulse Width	Continuous Light
Voltage	220V±10% / 50Hz / 30A		380V±10% / 50Hz / 40A
Max. Welding Thickness	≤5mm
Repeatability	±0.05mm
Power Stability	±0.2%
Laser Working Medium	Fiber
Fiber Length	10m(Standard)
Laser Mode	Single Mode/Multi Mode
Fiber Optic Interface	QBH
Control System	MacWelder software
Laser Lifetime	100000 / h
Cooling Method	Water Cooling
Gross Power	10KW

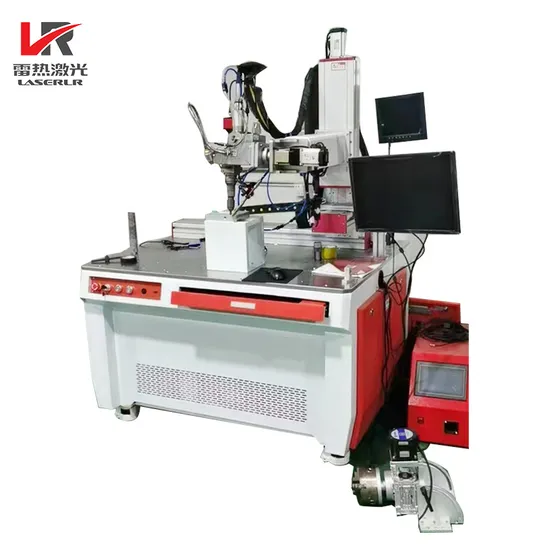

CNC Fiber laser welding system
Fiber CNC laser welding machine with mid size table or large X,Y,Z,A,B axis moving,can weld 180°angle of products.It is a kind of
laser welding equipment that couples a high-energy laser beam into an optical fiber, transmits the laser through the optical
fiber, and focuses on the workpiece to perform welding.
For parts that are difficult to be welded, the simple universal instrument
can be used to dock large molds and difficult-to-access precision parts, and implement flexible transmission non-contact welding,
which has greater flexibility.
The laser beam can split the light in time and energy, and can process multiple beams at the same time, which provides conditions
for more precise welding.
The fiber laser welding system can install with X,Y,Z axis moving table,and intall with robot arm too.
Working table range can matching 800*500*500mm,or 1000*500*500mm etc.

Laser power	150W 500W 1000W 1500W 2000W
Laser wavelength	1064nm
Power adjustment range	10~100%
Clading spot size	3~6 mm
Working distance	14 mm
Minimum beam quality	Core diameter 20~50 μ m
Rated output power	Full power output
Cooling way	Water cooling
Power supply	220V-380V. 50Hz
Power consumption	7 KW
Options	Automation, robot system

Welcome to consult and customize!
Different metal materials and thicknesses achieve better welding results without deformation, undercutting, or burning through.
Company Profile
Ningbo Heat Laser Technology Youyang Company was founded in 2018. It is located in Ningbo City, Zhejiang Province, an important port city on the southeast coast of China and the economic center of the Yangtze River Delta. It is a professional metallurgical company integrating design, manufacturing and sales. Innovative enterprise of pipe cutting equipment.
Since its establishment, Leire Laser has always focused on the field of metal pipe processing, adhering to the corporate mission of "becoming a global brand supplier of pipe cutting equipment! Changing the future with intelligent manufacturing", and winning market recognition with products and technology!

Related Products

FAQ
Q1:How do install the machine and what services can you provide?
A1:We have prepared user manual, installation preparation guide and installation video. These documents will besent to you in advance and you can prepare according to them. After the machine arrives. we will set up an onlinegroup where our engineers will be available to guide you.
Q2:What is the delivery time for the machine?
A2:Fast delivery. The delivery time for most machine models is usually within 15-30 working days
Q3:How do you provide after-sales service?
A3:You need to confirm with our engineers in the group now what the problem is, and our engineers will check if theycan solve it by remote technical guidance.
Q4:Are the displayed prices final offers?A4: No, It is a price range. The final quotation depends on the buyer's requirements
Q5: I don't know which one is suitable for me?
A:Please tell me your
1) Your materials
2)Max size of your material
3) Max cut thickness
4) Popular cut thickness

---
