OEM Customizable Vertical Universal Milling Machine X5040 X5032

Product Description

Product Description
OEM Customizable vertical universal milling machine X5040 X5032

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,2. Work table and guide rail through the ultra audio spark quenching.3. Work bench X. Y.Z are gear drive automatic feed and manual operation4. Milling head can be rotated 45 degrees Product Parameters

Specification	Unit	X5040	X5032
Table size	mm	1700X400	1325X320
T-slots(NO./Width/Pitch)		3/18/90	3/18/70
X axis travel(manual/auto)	mm	900/880	700/680
Y axis travel(manual/auto)	mm	315/300	255/240
Z axis travel(manual/auto)	mm	385/365	370/350
Rapid feed speed	mm/min	2300/1540/770
Table feed speed-X	mm/min	23.5-1180
Table feed speed-Y	mm/min	15-786
Table feed speed-Z	mm/min	8-394
Max load	kg	800	500
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30~1500
Spindle speed step	steps	18 steps
Spindle travel	mm	85	70
Max.swivel angle of milling head		±45°
Spindle nose to table distance	mm	115/500	30-400
Main motor Power	kw	11	7.5
Overall dimensions(L×W×H)	mm	2556×2159×2258	2294X1770X1904
Net weight	kg	4250	2900

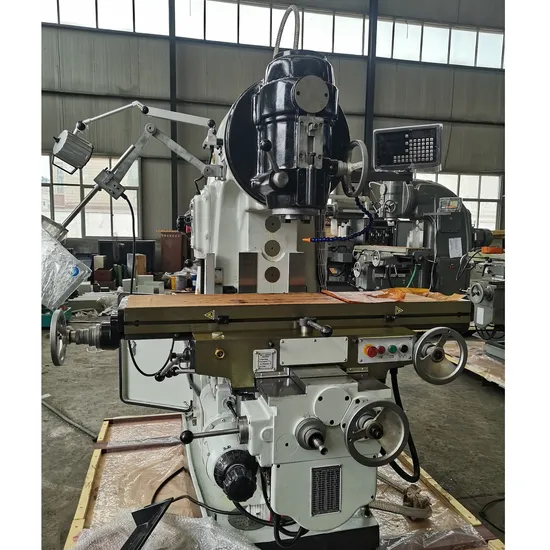

Detailed Photos

Certifications
Packaging & Shipping
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 200 employees.Products include: Gantry machining center, VMC machining center, CNC lathe,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-type etc.) Among them, about 70% of the products will be exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets.All products of the company have passed the international standard quality system certification ISO9001 and CE certification, please believe that we are a reliable supplier, you can fully trust our products, hope that we can establish long-term cooperationWelcome visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
FAQ
1.What is the MOQ ? A.Our minimum order quantity is 1 set.
2. What are the main products of the company?
A. The main production of CNC machining center series (gantry, vertical, horizontal), turning and milling compound, milling machine series (CNC, lifting table, gantry, ram type) and other more than 80 varieties of specifications.
3. why should you buy from us not from other suppliers?
A. Our company has more than 20 years of experience in the field of machine tools. At the same time, with a professional R & D team, actively attract domestic and foreign advanced technology combined with independent research and development, continuous innovation. More than 140 patents have been authorized by the State Intellectual Property Office, including 14 invention patents.
4. How long is the guarantee ?
A. 12 month after machine's delivery from factory. Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. what services can we provide?
A. Accepted Delivery Terms: Usually is FOB, Others like CIF,CFR,EXW...... are also acceptable.
B. Accepted Payment Type: Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos, Other payment terms are also acceptable after discussion.
If you need any further information, feel free to contact us.

---
