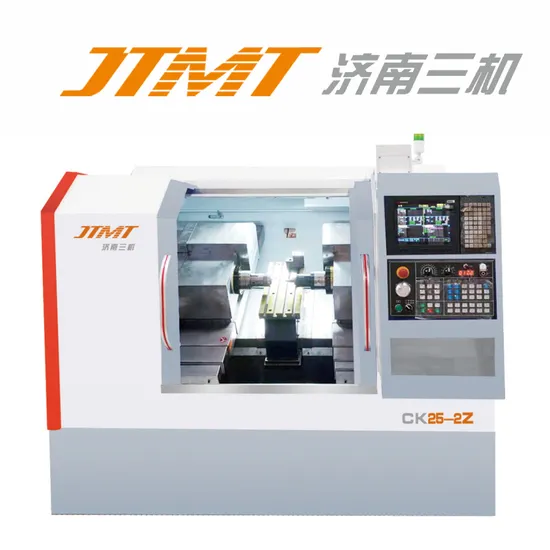

Jtmt Ck25-2z Double Spindle Carriage Single Row Seris Machining Tool CNC Machining Center Horizontal Machining

Product Description

We have 50 years of professional experience in the production of numerical control machine tools. The industrial park covers an area of 66,000 square meters and the construction area is 15,000 square meters. For professional services, please consult customer service. Product Description

1.The machine tool adopts dual-spindle double-carriage dual-spindle single-carriage, which can turn the same or different parts at the same time, shorten the distance of the machine tool, increase the operation time of one machine, and reduce the floor area.
2.The machine tool can add loading and unloading manipulator to realize one-time clamping of parts, and automatically complete the front and back turning of parts.
3.The dual-spindle CNC lathe adopts modular design, and the centralized lubrication system has high maintainability and can meet the customized needs of different users.
4.Double-spindle CNC lathe adopts high-precision linear guide rail and ball screw,with fast moving speed and high machining accuracy.
5.Double-spindle CNC lathe adopts fully enclosed protection; Beautiful and generous.
6.For industries: plumbing appliances, connectors for new energy vehicles, transmission bearings, diagonal vibration rods for communication base stations
Product Parameters

Item	Unit	CK25-2Z double-carriage single-row cutter	CK36-2X double-carriage double-row CNC lathe
Maximum workpiece rotation diameter on the bed	mm	Φ280	Φ420
Maximum machining diameter (disc type)	mm	Φ150	Φ220
Maximum machining diameter (shaft type)	mm	Φ100	Φ120
Maximum workpiece length	mm	100	150
Maximum bar material through-hole diameter	mm	Φ25	Φ36
Spindle nose type		A2-4	A2-5
Diameter of main shaft through hole	mm	Φ35	Φ45
Maximum spindle speed	r.p.m	6000	5000
Main motor power	kW	3.7	5.5
Hydraulic clamping system		Collet and 4-inch rotary cylinder	Collet and 5-inch rotary cylinder
Maximum travel of X-axis (diameter)	mm	790	1200
Maximum travel of Z axis	mm	210	400
X/Z axis fast moving speed	m/min	25	30
X/Z axis lead screw diameter/pitch	mm	3210/3210	3210/4010
Width of X/Z axis linear guide rail	mm	30/30	30/35
X-axis servo motor	N.m	6	10
Z-axis servo motor	N.m	6	10
X/Z Repetitive positioning accuracy of X/Z axis	mm	±0.005	±0.003
Tool rest	mm	16×16/Φ20	16×16/Φ20
Number of cutters		--	8
Total electrical capacity	KVA	13.5	14.5
Weight of machine	kg	3500	4000
hine size (length × wide × High)	mm	2000×1600×1850	2800×1800×2100

Certifications

FAQ

Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide
customers better quality, better price,and better service".

---
