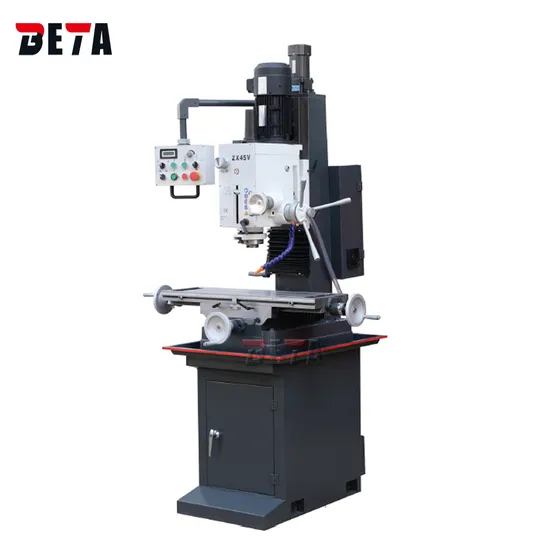

Zx45V Metal Turning Milling and Drilling Machine Price

Product Description

ZX45V Metal Turning Milling And Drilling Machine Price
Standard accessories:
1.800*240mm worktable
2.draw bar
3.drill chuck 1- 13mm/B16
4.morse taper MT4/B16
5.tools & tool box

Model	Unit	ZX45V
Max.drilling capacity(Steel)	mm	45
Max.milling capacity(Face milling)	mm	80
Max.milling capacity(End milling)	mm	32
T-slot size	mm	14
Work table size	mm	800x240
Working table Cross/longitudinal travel	mm	190/560
Spindle taper	-	MT4 or ISO30
Z-axis travel	mm	350
Sleeve travel	mm	120
Spindle speed	rpm	75-438, 438-2500
Max. distance spindle to table	mm	460
Max.swing of headstock	degree	±45°
Motor power	kw	1.5
Packing size	mm	1240x930x2100
Weight	kg	395

Feature and Application: 1. Milling, drilling, tapping, reaming, boring
2. The headstock can be rotated and tilted
3. Spindle micro-feed (automatic feed is a special accessory)
4. Support the spindle with strong high load tapered roller bearings
5. The spindle can be locked, and the machine head can be lifted and lowered.
6. Workbench gap setting is adjustable
7. Workbench limit position adjustable
8. Gearbox drive
9. Accurate positioning, strong rigidity and large cutting force
10. ZX45V with inverter motor, DELTA brand frequency converter with variable speed.
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
