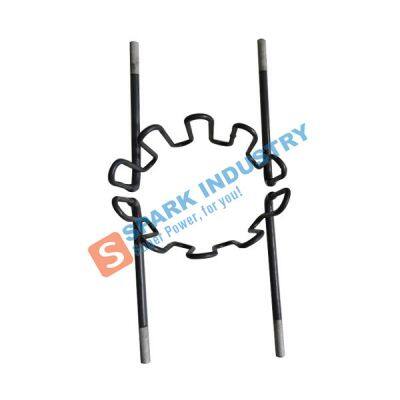

Customized Shape MoSi2 Heating Elements 500-1800 No pollution on the sintered material

Product Details

Product Description

Product Description
Product Description
Mosi2 Heating Element is one resistance heating component made from MoSi2 or as the basic material. When it's heated to high temperature under the oxidizing atmosphere, one dense MoSi2 film will be formed on its surface to protect the element against oxidizing further. Therefore, the element has unique anti-oxidation property under high temperature atmosphere. The highest temperature can reach 1900°℃, the applicable temperature is between 500-1800℃.
Specifications of Customized MoSi2 Heating Element
1. Diameter: 3/6mm; 6/12mm; 9/18mm; 12/24mm
2. Length: from 150 to 700mm, customized available
3. Operation temperature: from 500℃ to 1800℃.
4. Shape: Straight; U ; W ; L and other Special Types
5. Function: ceramic, magnetic material, glass, metallurgy, fireproofing material furnaces
Physical properties

Volume Density	Bend Strength	15-25kg/c㎡	Water Absortion	Hot Extensiblity
5.6-5.8g/cm³	15-25kg/c㎡	7.4%	1.2%	4%

Biggest advantage

1	anti-oxidation under high temperature
2	no pollution on the sintered material

---
