(CWD300) Efficient Multi-Function Hydraulic Crawler Diesel Engine DTH Water Well Drilling Rig

Product Description

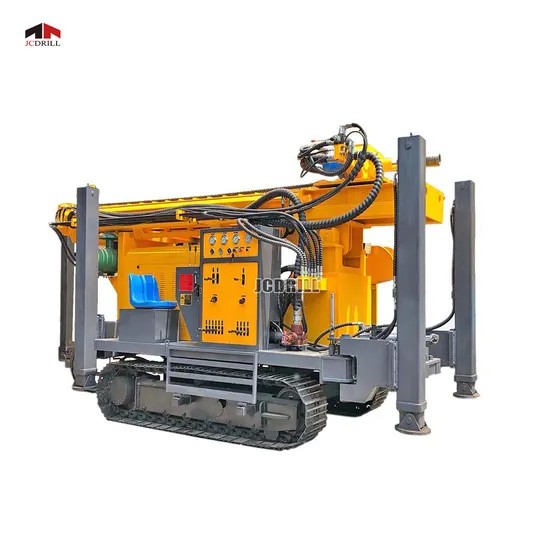

CWD300 Crawler Mounted Water Well Drilling Rig

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ105-Φ450
5	Hole Depth	m	300
6	Rotation Torque	N/M	3500-8500
7	Rotation Speed	rpm	0-115
8	Drill pipe diameter	mm	89/102/114
9	Drill pipe length	mm	3000-4500
10	Max. Feed Speed	M/min	0-25
11	Max. Lifting Speed	M/min	5-14
12	Max.Feed Stroke	mm	3550
13	Max.Pull back capacity	Ton	15
14	Max.Pulldown Force	Ton	4
15	Lifting force of hoist	T	1.5
16	Lifting height of tool winch	m	40
Engine
17	Diesel Engine type	YUCHAI
18	Rated Horse power	Kw	90
19	Electrical System	Volt	24
Compressor required(Optional)
20	Compressor Type	Rotary Screw/Movable
21	Pressure Required	Mpa	1.05-4.5
22	Air consumption	m³/min	16-60
Mud Pump(Optional)
23	Type		Hydrulic
24	Model		BW450
25	Stroke	mm	110
26	Displacement	L/Min	450
27	Discharge pressure (Mpa)	Mpa	2-5
28	Suction tube diameter	mm	76
29	Discharge pipe diameter	mm	51
Dimension
30	Net Weight	T	8.5
31	Shipping Length	mm	5000
32	Shipping Width	mm	1990
33	Shipping Height	mm	2550
34	Ground Clearance	mm	320

Pictures
Others
Service 1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
Certificate
FAQ
Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
7-25 days after received your payment.
Q4: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.

---
