Low Price Pipe Threading CNC Turning Machine for Oil Country Lathe Qk1363 Pipe Threading Machine Tool Torno

Product Description

Product Description

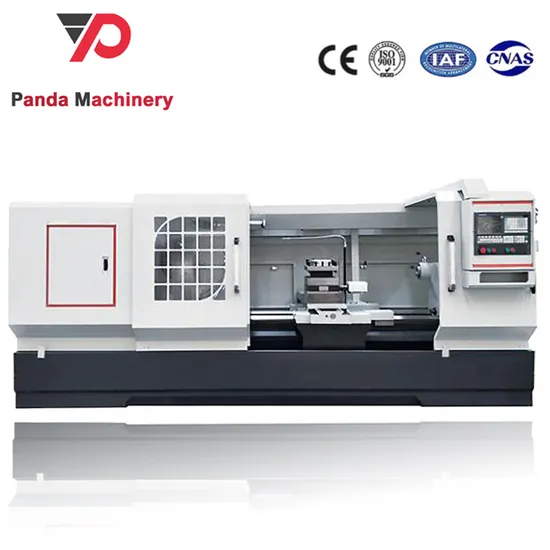

cnc machine tool QK1363 large spindle hole pipe threader cnc lathe for metal cnc
CNC PIPE THRADING LATHE APPLICATION This series CNC pipe threading lathe is meainly designed for processing internal and external pipe threads, including metric,inch and taper threads.
CNC PIPE THREADING LATHE INTRODUCTION This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch,module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on. FEATURES Big spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide way contact surface use Turcite B to maintain accuracy

SPECIFICATION	Units	QK1363
Swing over bed	mm	1500
Swing over cross slide	mm	900
Distance between centers	mm	1500/3000
Pipe threading range	mm	330-630
Guideway width	mm	1100
Max. load capacity	T	10
Spindle bore	mm	640
Spindle speed steps	-	VF. 3 steps
Spindle speed range	rpm	2-120
Chuck	mm	Φ1250 4-jaw electric
Turret/tool post	-	CNC turret 4 position
Tool shank size	mm	50x50
X axis travel	mm	750
Z axis travel	mm	1250/2750
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	4000
Tailstock quill diameter	mm	Φ260
Tailstock quill taper	-	Metric 80
Tailstock quill travel	mm	300
Main spindle motor	kW	37
Coolant pump motor	kW	0.25
Weight	T	18/19.3
Width x Height	mm	2500x2500
Length	mm	5600/7100

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield	Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

Detailed Photos
CNC : GSK980TC3, servo motor,Servo driver 320mm Manual 3 jaw chuck Manual tail stock 4 station electric tool turret Automatic lubrication system, cooling system.Lighting system Standard packing list, Tool box 380v 50hz 3phases Sample Products

Company Profile

Zaozhuang Panda CNC Machinery Co., Ltd. is an enterprise specializing in the production of various types of rotary joints and metal processing machinery. The plant covers an area of 100,000 square meters, with a construction area of 80,000 square meters. For decades, we have been providing all kinds of CNC milling machines, CNC machining centers, CNC lathes, lathes, milling machines, drilling machines, sawing machines, grinding machines, as well as metal processing machinery products such as tools and mechanical accessories for all walks of life in the national economy. Our machines are very popular overseas and exported to more than 100 countries and regions, and our machines are loved and welcomed by customers,Have obtained CE, ISO, TUV, SGS, EAC and other certificates. We have more than 20 years of experience in supplying these machines to more than 100 countries, and our machines are loved and welcomed by customers at home and abroad.
Why choose us:
Factory with ISO,SGS ,CE, EAC, TUV, BV, ERP, SONCAP certificate.
More than 80000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience.
24 hours online service at any time.
Support ODM OEM.
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Warranty time is 2 years

Certifications


Cooperated Brands


FAQ


1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us at any time.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
100% Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: What's the MOQ?6.. What levell of series fo you provide?--->Your inquiry will be replied within 24 hours.
7. Technology support by providing operation?training videos?
---->Professional after-sales service team. We can Provide Technical support online service and Machine operation Video. We can provide on-site training and commissioning Video. We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.
8. What is our advantages?----> Competitive price: We can meet your budget and best-selling business very well. OEM Accepted: We can produce customized design. Good Service: We treat clients as friends and provide problem solving anytime you need. Good Quality: We have strict quality control system. Good reputation in the market. Fast & Delivery: We have big discount from forwarder (Long-term Contract).
9. Can you customize the machine for the customer?---->Yes. We can, if you need customized services, please contact us
10.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
11.Agents Wanted:---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
