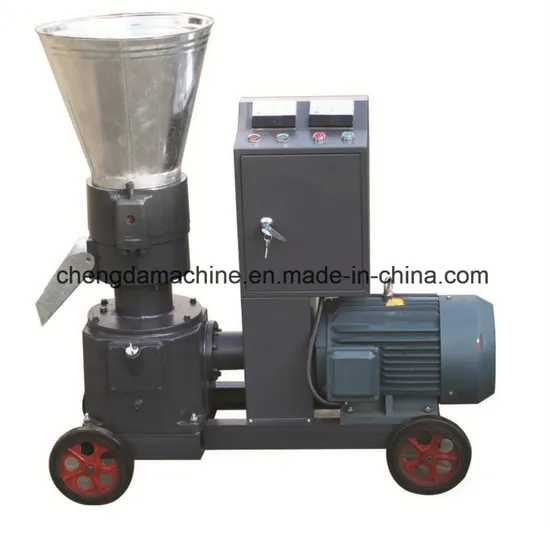

Feed Wood Pellet Making Machinery/Feed Pellet Machine/Feed Pellet Mill/Feed Pellet Press/Feed Pelletizer /Feed Pellet Making Machine to Making Feed Pellet

Product Description

Products description:
1. Pellet press can make all kinds of bio-mass material to be solid pellets which is
for burning fuel or animal feed.
2. We have new improved models for wood pellet making. Specially design and
improved machines according to European standard, with closed house to cover
motor, CE electrical parts & insolated protective plate for the electrical panel.
3. Our pellet mill also can process all kinds of sawdust. Paddy Straw, Sunflower
Stalk, Forestry Wastes, Wood Chips, Chemical And Many Other Wastes Or Solid Powder Material.
4. Our pellet mill have CE certificate, Which all parts can meet EU standard.
Technical parameter:
Version A are gasoline or diesel engine driven.
Version B are driven by e-motor, without extra cabinet and cover on the motor.
Version C are the first improved models with extra cabinet and closed house on the motor.

	Power	Capacity(kg/h)
Model No.	Diesel Engine	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120A	8HP Diesel Engine with electric starter	60-100	40-60	120/140	2.5-10mm	87*44*73
KL150A	8HP Diesel Engine with electric starter	90-120	50-90	120/140	2.5-10mm	76*43*71
KL200A	15HP diesel engine with electric starte	200-300	110-140	280/310	2.5-10mm	118*56*95
KL230A	22HP diesel engine with electric starte	300-400	150-190	280/310	2.5-10mm	118*56*95
KL260A	35HP diesel engine with electric starte	400-600	220-280	450/480	2.5-10mm	184*70*116
KL300A	55HP diesel engine with electric starte	600-800	280-320	520/560	2.5-10mm	220*60*123
KL360A	55HP diesel engine with electric starte	700-900	300-380	600/620	2.5-10mm	227*62*126
KL400A	55HP diesel engine with electric starte	900-1100	400-550	750/780	2.5-10mm	227*62*126

Model No.	gasoline engine	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120A	7.5HP gasoline engine	60-100	40-60	80/100	2.5-10mm	76*43*71
KL150A	7.5HP gasoline engine	90-120	50-90	95/115	2.5-10mm	76*43*71
KL150A	13HP gasoline engine	200-300	110-140	95/115	2.5-10mm	87*46*73

	Voltage	Capacity(kg/h)
Model No.	Power(E-motor) 50HZ	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120B	3kw220v 1phase	30-60	20-30	80/100	2.5-10mm	75*32*62
KL120B	3kw 380v 3phase	50-100	30-50	80/100	2.5-10mm	75*32*62
KL150B	4kw 380v 3phase	90-120	50-90	95/115	2.5-10mm	77*34*68
KL200B	7.5kw 380v 3phase	200-300	110-140	200/230	2.5-10mm	100*43*95
KL230B	11kw 380v 3phase	300-400	150-190	290/320	2.5-10mm	114*47*97
KL260B	15kw 380v 3phase	400-600	220-280	330/360	2.5-10mm	120*52*107
KL300B	22kw 380v 3phase	600-800	280-320	410/450	2.5-10mm	127*52*107

	Voltage	Capacity(kg/h)
Model No.	Power(E-motor)50hz	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120C	3kw 220v 1phase	60-100	40-60	80/100kg	2.5-10mm	75*35*65
KL120C	3km 380v 1phase	60-100	40-60	80/100kg	2.5-10mm	75*35*65
KL150C	4km 380v 3phase	90-120	50-90	95/115kg	2.5-10mm	75*35*65
KL200C	7.5km 380v 3phase	200-300	110-140	200/230kg	2.5-10mm	100*46*90
KL230C	11km 380v 3phase	300-400	150-190	290/320kg	2.5-10mm	114*54*93
KL260C	15km 380v 3phase	400-600	220-280	330/360kg	2.5-10mm	122*53*107
KL300C	22km 380v 3phase	600-800	300-360	410/450kg	2.5-10mm	128*58*105
KL360C	22km 380v 3phase	700-900	300-380	470/550kg	2.5-10mm	134*58*106
KL400C	30km 380v 3phase	900-1100	400-550	630/660kg	2.5-10mm	145*62*115

KL-L series
	Voltage	Capacity(kg/h)
Model No.	Power(E-motor),60hz	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120	1.5kw 220v 1 phase
	2.2kw 220v 1phase
KL120L	3kw 380v 3phase	50-100	30-50	90/110	2.5-10mm	75*32*65
KL150L	5.5kw 380v 3phase	100-150	90-120	130/180	2.5-10mm	75*35*60

	Voltage	Capacity(kg/h)
Model	Tractor Power	Feed output	Wood output	N/G weight(kg)	Die Hole	Packing Size
KL120P	6-10HP	60-100	40-60	70/90	2.5-10mm	76*42*71
KL150P	6-12HP	90-120	50-90	90/100	2.5-10mm	76*72*71
KL200P	10-18HP	200-300	110-140	140/160	2.5-10mm	77*56*102
KL230P	18-28HP	300-400	150-190	150/180	2.5-10mm	77*56*102
KL260P	28-45HP	400-600	220-280	200/230	2.5-10mm	77*56*115
KL300P	45-55HP	600-800	300-350	260/290	2.5-10mm	77*56*115
KL360P	50-60HP	700-900	300-380	300/330	2.5-10mm	87*85*116
KL400P	50-70HP	900-1100	400-550	400/420	2.5-10mm	87*85*116

	Voltage	Capacity(kg/h)
Model	Power(E-motor)50hz	Wood output	N/G weight(kg)	Die Hole	Packing Size(cm)
MKL225	7.5KW 380V 3PHASE	90-140	230/260	230mm	98*47*98
MKL229	11kw 380v 3phase	140-180	320/360	230mm	92*64*103
MKL295	15kw 380v 3phase	180-260	450/480	300mm	117*52*105
MKL335	22kw 380v 3phase	240-300	580/600	335mm	134*64*115
MKL395	30KW 380V 3PHASE	300-400	620/650	400mm	152*60*121

	Voltage	Capacity(kg/h)
Model	Power(E-motor)60hz	Wood output	N/G weight(kg)	Die Hole	Packing Size(cm)
MKL225D	15hp with electric starter	90-140	310/320	230mm	118*56*95
MKL229D	22hp with electric starter	140-180	310/320	230mm	119*92*102
MKL295D	35hp with electric starter	180-260	450/480	300mm	121*92*105
MKL335D	55hp with electric starter	240-300	680/700	335mm	134*60*115
MKL395D	55hp with electric starter	300-400	880/900	400mm	152*60*121

Details of sawdust pellet machine wood pellet making machine price
(1) The speed of our sawdust pellet machine wood pellet making machine price :
The motor speed is fixed, all of the particles machine motor speed is 1400RPM.
Our pellet machine's speed is 200-300RPM, inside the machine with a complex reducer, which can change the E-motor speed and the main shaft speed.
(2) Fuel consumption of our sawdust pellet machine wood pellet making machine price
Diesel engine pellet machine's fuel consumption: For 8Hp, it is 1.23L/H.For 15Hp, it is 2.31L/H.For 22Hp, it is 3.36L/H.
For 35HP, it is 5.39L/H. 7.5HP gasoline guzzling about 1.2L / Hour.
(3) Wheel of our sawdust pellet machine wood pellet making machine price :
Motor-driven particle machine not with wheels, diesel particulate gasoline powered machines with wheels.
(4) Transmission of our sawdust pellet machine wood pellet making machine price
Motor is shaft drive. Diesel shaft drive.
(5) Package of our sawdust pellet machine wood pellet making machine price
Packaging is plywood wood care, non-wood, fumigation.
(6) Spare parts and lubrication of our sawdust pellet machine wood pellet making machine price
The machines' spare parts case takes a Grease gun, used to add lubricating oil pressure roller and spindle bearings, where oil useLithium-based lubricants: GB7324-94.
(7) Emergency stop switch of our sawdust pellet machine wood pellet making machine price
If you need, we can add the emergency stop switch for you.
(8) MKL225,MKL229,M KL 335, MKL 395 is three pressure rollers. At the time of installation, the gap between the pressure roller and the matrix (Die) needs adjusted 0 ~ 0.5mm. (The thickness of a sheet of A4 paper is about 0.1mm) smaller the gap, the material will be sooner, butthe disc and the pressure roller loss is also faster.
(9) Star-delta starter of our sawdust pellet machine wood pellet making machine price
It is main used to protect the motor.
(10)pellet's length of our sawdust pellet machine wood pellet making machine price
The pellet isn't fixed, it is 2-5cm.But you can adjust the spout's screw to change the position of the blade, it could also conteol the pellet's length.
How to order our sawdust pellet machine wood pellet making machine price
(1) You find the product you are interested in in ****** and send the price inquiry to us.
(2) I will send you a email about the information and the price list of the product.
(3) You can chose the suitable model you need.
If you have any problems for our machine or if you have any requires for our machine, just feel free to let me know.
I will reply you at once and follow your requires to produce the machine.
(4) I will make a proforma invoice for you the you can do the payment according to the proforma invoice.
(5) After we receive the payment, we will begin to produce the machine.
Details of sawdust pellet machine wood pellet making machine price
(1) The speed of our sawdust pellet machine wood pellet making machine price :
The motor speed is fixed, all of the particles machine motor speed is 1400RPM.
Our pellet machine's speed is 200-300RPM, inside the machine with a complex reducer, which can change the E-motor speed and the main shaft speed.
(2) Fuel consumption of our sawdust pellet machine wood pellet making machine price
Diesel engine pellet machine's fuel consumption: For 8Hp, it is 1.23L/H.For 15Hp, it is 2.31L/H.For 22Hp, it is 3.36L/H.
For 35HP, it is 5.39L/H. 7.5HP gasoline guzzling about 1.2L / Hour.
(3) Wheel of our sawdust pellet machine wood pellet making machine price :
Motor-driven particle machine not with wheels, diesel particulate gasoline powered machines with wheels.
(4) Transmission of our sawdust pellet machine wood pellet making machine price
Motor is shaft drive. Diesel shaft drive.
(5) Package of our sawdust pellet machine wood pellet making machine price
Packaging is plywood wood care, non-wood, fumigation.
(6) Spare parts and lubrication of our sawdust pellet machine wood pellet making machine price

---
