Logo Print Screen Printing Equipment for Lead Acid Battery

Product Description

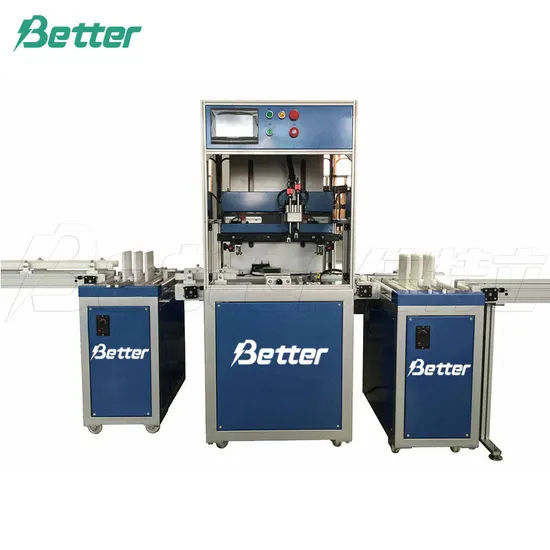

Automatic Screen Printing Machine
The screen printing machine adopts PLC control and human machine interface digital operation. This machine adopts mechanical transmission, with accurate positioning and fast speed. It provides a variety of function settings, to achieve the operation of data, standardization, and humanization of the perfect requirements. Innovative structure design, with servo motor guide rail guiding system, running fast, stable and smooth, automatic turnover, automatic printing, Led cold light source instant curing, automatic, over-turn 90°. Accurate positioning, energy saving, automatic feeding, labor saving, ensure printing quality.

Main Parameter

NO	Item	Parameter
1	Maximum printing area	160mmx200mm
2	Steel plate size	200mm*250mm
3	Printing color	Two colors
4	Printing precision	±0.05mm
5	Control system	Panasonic
6	HMI	WEINVIEW
7	Positioning system	Mechanical positioning
8	Conveyor drive	Servo motor + mechanical drive
9	Working cycle	About 6S
10	Working pressure (Mpa)	0.4~0.6Mpa
11	Machine structure	combination
12	Production capacity	About 500pcs/hr
13	Power Supply	220V 50/60Hz
14	Positioning induction	Optical fiber
15	Machine dimension	3000mm*1750mm*1700mm

Structure Configuration

Structure	Item	Accessory Name	Configuration Description
Basic structure	Frame	Q235A+ high quality square tube	Frame and parts
	Sealing plate	high quality cold-rolled sheet
	Other parts	cast aluminum and alloy aluminum
Back and forth system	Back and forth drive	Rodless cylinder	SMC
	Guiding	Guide rail	HIWIN
Drive system	Drive	Servo motor	Panasonic
	Guiding	Mechanical drive	combination
Control system	Control circuit	PLC+HMI	Panasonic
	Pneumatic control	solenoid valve	SMC

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Why choose us
BETTER has developed into an innovative enterprise to provide general contracting system integration services, including R&D and design, project planning, complete equipment, installation and commissioning, technical output,technical training, after-sales guarantee and so on. We has created"China's First Station" and became the "Purchasing Center in China" for many international customers. BETTER took the lead in putting forward the concept of battery industry full-resource operation, and thoroughly solved problems including the long project construction period, heavy technical communication task, unreasonable production line matching, and cumbersome business communication arising from purchasing from multiple sources by customers.

Service Project
1. Battery manufacturing equipment and turn-key solutions for complete sets of equipment,
2. Battery factory designs, battery product designs and tooling,
3. Battery manufacturing technology support and Transfer,
4. Production management guidance & consultancy for battery manufacturers,
5. Battery manufacturing related accessories, raw materials, chemicals,
6. On-site Battery Production Guidance & Consultancy.
Service Standards
Nice Performance , Nice Price , Free Planning , Pleasant: Never Say "No",
they constitute 4P service standards for the global battery manufacturing industry established by BETTER.

Packing & Delivery
Packing:Wooden case, export standard package
Delivery Time:Delivery in 30 days after receipt of advance payment.


Team Style
Colorful team activities
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Profile
Better Technology Group Limited (hereinafter referred to as "Better Tech Group"), as an integrated solution operator for global battery manufacturing, has been delving deep into the markets of BRICS countries and countries along the "Belt and Road" for more than ten years. Nowadays, our business scope covers nearly 120 countries and regions around the world, and Better Tech Group has been actively practicing the corporate mission-"Let 'Made-in-China' beautify the world".
Better Tech Group adheres to customer-oriented principles and boasts two sub-brands BETTER and WELLPACK which are specialized in lead acid batteries, lithium-ion batteries and related adoption solutions while providing global customers with turnkey solutions for battery manufacturing, lead-acid battery to lithium-ion battery designing and manufacturing, solar energy storage and charging integrated solutions, new energy zero-carbon solutions, customized production of finished batteries and other premium products and services.
Better Technology Group Limited has been approved by ISO9001 Quality Management Scheme (QMS), authenticated with the rights to implement and revise the battery manufacturing "4P Service Standards" and has been awarded the honorary titles of "Fujian Technology Little Giant", "Xiamen Growth Small and Medium-Sized Enterprise" and "Outstanding Export Branded Enterprise", "Xiamen Innovative Small and Medium-Sized Enterprise", "Xiamen New High-Tech Enterprise". At present, Better Group obtains nearly 100 independently-developed patents authorized by the CNIPA (China National Intellectual Property Administration) and gets approved to be a member enterprise in China Industrial Association of Power Sources (CIAPS). We work in close cooperation with the world's top 500 enterprises and China's leading universities in product research and development, technological innovation, and the integration of industry, academia and research, etc. Since the corporate establishment, Better Tech Group has invested a large amount of capital in product research and development, technological innovation and quality control, and the annual output value of the whole company has been increasing year by year.

---
