X-ray Imaging Industrial Inspection Machine and Broken Needle, Metal Detector for Shoes, Garment, Textile, Toys, Fabric, Bags, Hats, Suitcases Industry, Factory

Product Description

X-ray Industrial Inspection Machine and Broken Needle, Metal Detector for Shoes, Garment, Textile, Toys, Fabric, Bags, Suitcases Industry, Factory

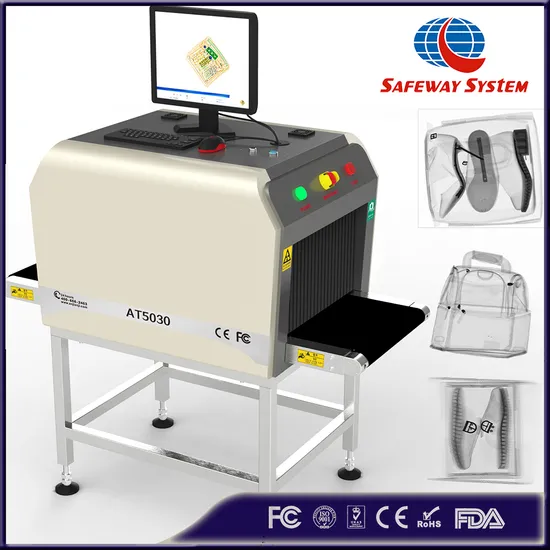

Needle Detector AT5030Y Safeway System AT5030Y Needle Detector Machine is used for the purpose of detecting metal chips,broken needles inside sewing, fabric, pharmaceutical, chemical, toys, garment industry and food products. It detects needles or metal chips with the help of x-ray penetrating, scanning and outstanding signals detecting and imaging technology, with very high accuracy. Equipped with high voltage x-ray generator, detector chips, and sophisticated software, the machine is highly efficient as it saves a lot of money, manpower, and time. Safeway System offers a leading and reliable solution for both security and industrial areas.
Safeway System AT5030Y X-ray safety inspection equipment is a single-energy X-ray inspection equipment independently developed by Safeway Inspection System limited. Utilizing highly integrated Linux operating system and optimized configuration, system operation and operation are more convenient.
Leading advantage
Leading worldwide: The first all-digital security inspection machine in China, from signal reception to image display, all-digital signal transmission and processing, strong anti-interference ability and clear images.
Unique system: Embedded Linux operating system, using multi-core ARM, simple architecture, extremely low power consumption, energy saving and environmental protection, and with real-time status monitoring function, to keep track of the equipment working process.
Safety and environmental protection: The equipment complies with safety and environmental protection standards, and the one-key shutdown and intelligent energy-saving mode have won patents.
Stable and reliable: The production process of the product is strictly controlled in accordance with the ISO9001 quality management system. It has passed strict high and low temperature test, damp heat test and vibration test to ensure that the product can run continuously for more than 10,000 hours without failure.
Basic parameters
Tunnel size: 500mm (width) * 301mm (height)
Conveyor speed 0.22m/s
Maximum load capacity 5kg
Penetration power greater than 10mm steel plate
Line resolution Φ0.0787mm wire
Penetration resolution Φ0.202mm wire
Spatial resolution level: Φ1.0mm, vertical: Φ1.0mm
Radiation safety
Single inspection dose less than 2.1μGy
The leaked radiation dose rate is less than 0.3μGy/h (testing anywhere 5cm away from the outer surface of the equipment meets and is better than domestic and foreign health and safety standards)
Efficient radiation protection Adopt double-layer staggered, wear-resistant, strong lead curtain, and super thick 2-5mm lead plate to ensure the safety and reliability of the equipment
X-ray generator
Digital interface Tube voltage 30-80KV (adjustable), current 0.3-3mA (adjustable)
Cooling/working cycle Sealed oil cooling/100%
Equipment function
Image processing functions: black and white, local increase, super increase, edge enhancement, gray sweep, reverse color, high penetration, low penetration, brightening, darkening, zoom in/out, pull back/forward pull
System function power-on self-check, multi-level user management, image management, curve diagnosis, system equipment information, 1-16 times stepless zoom, clear channel reminder, equipment information query, fast language switch, U disk upgrade software, one-key calibration, One-button shutdown, smart roller (optional)
Structural design
The frame incorporates advanced industrial design concepts, rust-proof, anti-corrosion, and cable damage-proof, solemn and stable
Anti-pinch device The unique anti-pinch design under the belt at the entrance and exit of the channel is safe and reliable
Humanized design Professional keyboard, ergonomic design, convenient and comfortable to use
High-quality belt High-strength polyester silk woven 1.2mm green PVC rubber belt, with better lateral stability
Installation data
Dimensions (without receiving rack) 1352mm (length) * 680mm (width) * 1211.5mm (height)
Working temperature/humidity 5ºC~45ºC/0%~90% (non-condensing)
Storage temperature/humidity -20ºC~60ºC/10%~90% (non-condensing)
Working power supply AC 220V (±10%) 50±3Hz
Power loss 0.3KW
Safeway System - We're the original supplier and can provide you
Factory price, with best quality

---
