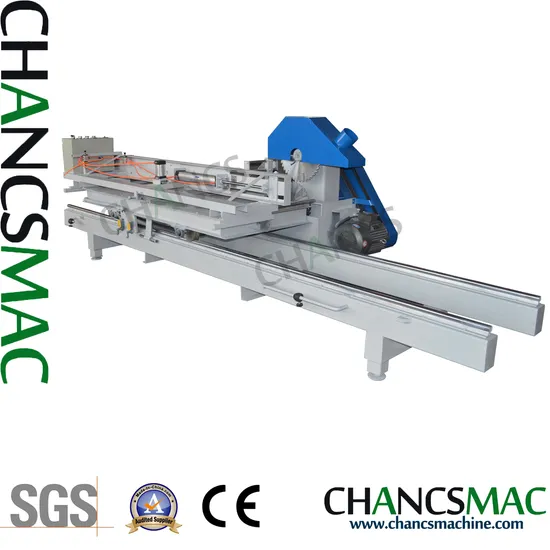

Sliding Table Saw for Cutting Small Logs CH4000

Product Description

Wood Log Sliding Table Saw1.Introduction:
Saw is designed for small diameter logs cutting into planks. It is more flexible, convenient and easier operating than band saw.Sliding table saw can cut the logs uniformly and smoothly.There are types of models with different length (1m, 1.5m, 2m, 3m, 4m even more) and diameter(100-400mm). Length and diameter can be customized.
2.Parameter:

Model	CH1000	CH2000	CH3000	CH4000
Max cutting diameter	300mm	300mm	300mm	400mm
Max cutting length	1000mm	2000mm	3000mm	4000mm
Saw blade diameter	405mm	405mm	405mm	455mm
Top saw power	5.5KW	7.5KW	7.5KW	11KW
Bottom saw power	5.5KW	7.5KW	11KW	15KW
Feeding type	Auto/Manual	Auto/Manual	Auto/Manual	Auto/Manual
Feeding speed	Adjustable	Adjustable	Adjustable	Adjustable
Log fasten type	Air pressure	Air pressure	Air pressure	Air pressure
Overall size	2000*1500*1350	4000*1500*1350	6000*1500*1350	8000*1600*1600
Total weight	800kg	1000kg	1200kg	1500kg

3.Detailed Images:
1. It's efficiency is higher than band saw.
2.High precision. Machine equips round rod linear guide rail (Length way and width way) can make sure the precision and smooth cutting.
3.Equip hand wheel and gear rack to adjust cutting thickness according to customers' demand.
4. There is air lock to lock the logs in length and width. To make sure the smooth cutting in the working process.
5.Heavey duty design with thick square tube frame. Stable and durable.
6. English version button instruction. Simply and safely operating, there is no need special technician to operate. Easy to learn.
7. Log Saw equips Inverter, can adjust the feeding speed accordingly.
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.

---
